Dynasty Battery UPS6-620MR
Dynasty Battery UPS6-620MR
UPS6-625PLP Battery C&D Pure Lead Plus Dynasty

Other

UPS6-625PLP Battery C&D Pure Lead Plus Dynasty

$ 389,99

UPS6-625PLP Battery C&D Pure Lead Plus Dynasty UPS6-620MR 6V AGM

16 in stock

Check the match before ordering

  • Part numberMatch the complete number, including letters and suffixes.
  • Electrical specificationConfirm voltage, chemistry and charging requirements.
  • Physical fitCompare dimensions, connector, polarity and terminal position.
Part / SKU
UPS6-625PLP
Brand
N/A
Categories

Description

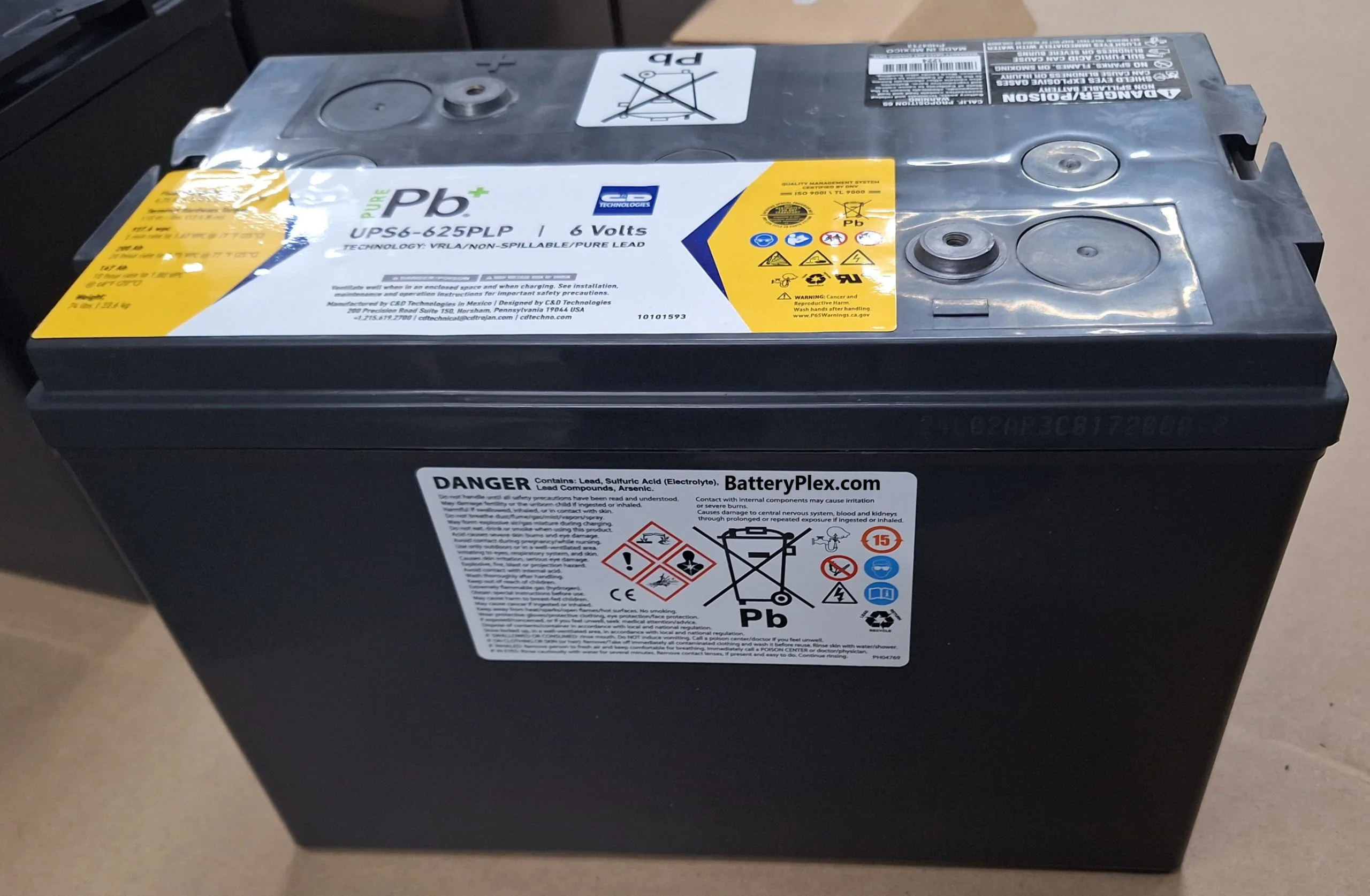

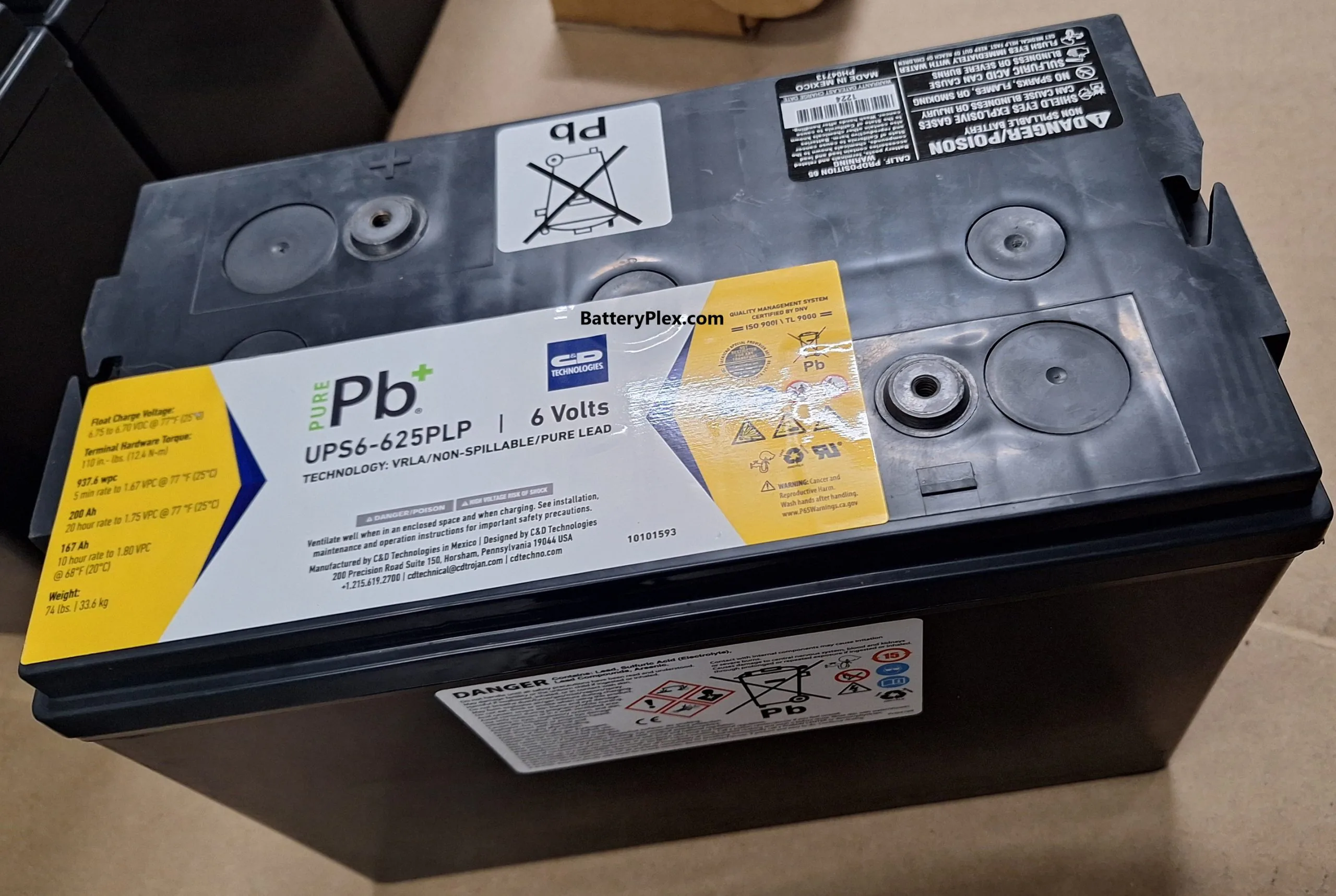

UPS6-625PLP Battery C&D Pure Lead Plus Dynasty

UPS6-625PLP Battery C&D Pure Lead Plus Dynasty replaces the MAXRATE UPS6-620MR. This is a new 12 Volt AGM battery.

C&D Pure Lead Plus VRLA AGM technology are meant for a variety of applications including UPS Systems & more.

  • SPECIFICATIONS:
  • Model: UPS6-625PLP replaces UPS6-620MR
  • 6 Volt
  • CAPACITY: 200 Amp Hour
  • Group size: 27
  • CHEMISTRY: Sealed Lead Acid AGM Design
  • DIMENSIONS: L 12.63 x W 6.97 x H 8.94 in.
  • WEIGHT Before Shipment:72 lbs

Features and Benefits:

• Pure Lead Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% & freedom from acid maintenance.

• Patented Long Life Alloy has the lowest calcium levels as a result the industry minimizing grid growth, reducing gassing, and extending battery life.

• Patented UL Recognized Flame- arresting vents in each Cell for safety and long life.

• Designed with the same recombination, thermal runaway prevention, gassing and flame retardant characteristics of the Bellcore 4228 compliant Dynasty Telecom products.

• Flame retardant polypropylene case and cover compliant with UL94V-2

• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.

• Thermally welded case-to-cover bond to eliminate leakage.

• Can be operated in any orientation. Upright, side, or end mounting recommended.

UPS6-625PLP Battery C&D Pure Lead Plus Dynasty Specifications

This battery replaces the following part number. C&D UPS6-620FR, UPS6-620MR Enersys HX800-6FR, Enersys HX800, Exide S6V740F, Exide S6V740, Exide S6V740NG, Power PRC/TC-6200S, Sterling HA200-6620FR, Eaton BAT-0050, GNB Marathon M6V190 M12V190F, Leoch XP6-620FR, 6MQ620, SLA-6V200 UB62000 BW62000 and the

Additional information

Brand

N/A
Product Type

Other
Product Name + Part Number

UPS6-625PLP Battery C&D Pure Lead Plus Dynasty

Reviews

There are no reviews yet.

Be the first to review “UPS6-625PLP Battery C&D Pure Lead Plus Dynasty”

Your email address will not be published. Required fields are marked *

Ordering guidance

A reliable replacement starts with an exact match

Similar-looking batteries and accessories can use different voltage, chemistry, connectors or polarity. Verify the label and physical fit before purchase.

View the battery matching guide
Is matching the voltage enough?

No. Chemistry, dimensions, connector type, polarity, terminal position and charging requirements must also match.

Which number should I compare?

Use the complete model or part number printed on the original item. Include every prefix, suffix, dash and revision where shown.

What if my device model is not listed?

Do not assume compatibility from appearance alone. Compare the original part number and specifications or confirm the requirements in the device documentation.
