Description

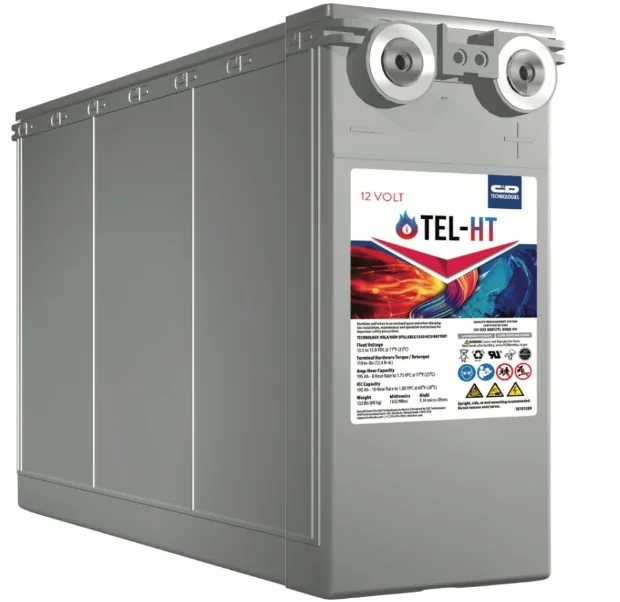

TEL12-190FHT Battery C&D
The C&D TEL12-190FHT is a high-temperature front-terminal AGM battery built for telecom backup, UPS support, and other critical standby power applications. Its sealed VRLA design helps deliver dependable long-life performance, easier service access, and reliable operation in demanding environments.
Why choose this TEL-HT battery?
- High-temperature design: built for elevated-temperature standby environments
- Sealed AGM construction: no periodic watering required
- Front-terminal layout: easier installation and maintenance access
- Long-life standby power: designed for telecom and mission-critical backup systems
- Reliable fit for cabinet and rack applications: ideal where front access matters

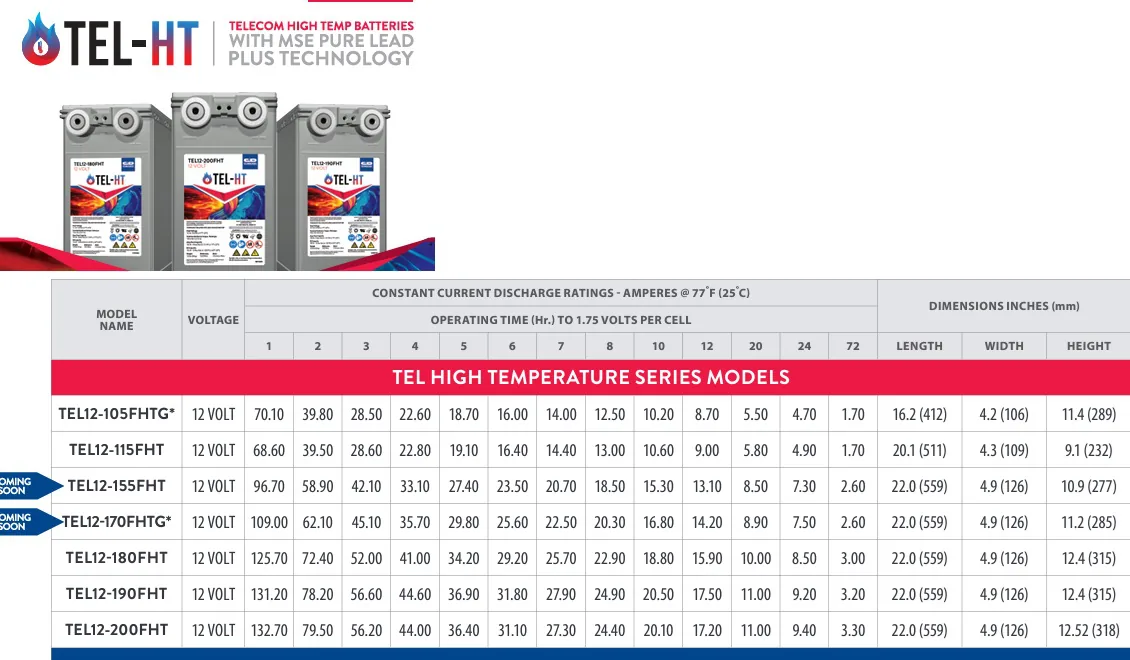

Specifications
| Model | C&D TEL12-190FHT |
|---|---|
| Voltage | 12V |
| Battery Type | VRLA AGM, sealed maintenance-free |
| Nominal Capacity | 199Ah at the 8-hour rate |
| Dimensions (L × W × H) | 22.0″ × 4.9″ × 12.4″ |
| Weight | 135 lb |
| Terminal | Front access, threaded copper alloy insert, 1/4-20 bolt |
| Recommended Float Voltage | 13.65 VDC ± 0.15 V per 12V unit |
| Equalize Voltage | 14.40 – 14.80 VDC per 12V unit |
| Operating Temperature (Discharge) | -40°F to +160°F |
Common applications
- Telecom backup power systems
- Network cabinets and remote communication sites
- UPS and DC standby systems
- Utility and infrastructure backup power
- Critical equipment requiring sealed front-terminal batteries
Shipping notes
- This is a heavy battery and typically ships by freight/LTL.
- Please inspect the shipment upon arrival and note any visible damage with the carrier.
- Shipping weight may be higher than the battery’s listed net weight.
Compatibility help
If you are replacing an existing front-terminal telecom battery, send us the current battery model number, terminal photos, and available tray dimensions. We can help confirm the correct replacement before you order.
FAQ
What is the TEL12-190FHT Battery C&D?
This model is a 12V front-terminal AGM VRLA battery designed for telecom and standby power systems where dependable backup power and long service life are important.
What are the key specifications?
The C&D TEL12-190FHT is rated at 12 volts and 199Ah at the 8-hour rate. It uses a front-terminal configuration and a sealed AGM design for easier maintenance access and dependable standby performance.
Is this an AGM battery?
Yes. It is an AGM VRLA battery, which means it is sealed, maintenance-free under normal use, and does not require periodic watering.
What is it commonly used for?
This battery is commonly used in telecom backup systems, communications cabinets, UPS systems, and other standby power applications that require reliable front-access battery installation.
What does front terminal mean?
Front-terminal batteries place the connection points at the front of the case instead of the top, making installation and service easier in rack and cabinet applications.
Is it suitable for high-temperature environments?
Yes. The TEL-HT series is built for elevated-temperature standby applications where heat tolerance and long-term reliability are important.
Does it require regular maintenance?
The sealed AGM construction reduces maintenance because there is no need for periodic watering. Proper charging, installation, and routine system checks are still recommended.
How do I confirm this is the right replacement?
Match the voltage, capacity, terminal style, dimensions, and equipment requirements to your current battery. If you need help, contact us with your model number and photos before ordering.
Can another brand replace this battery?
An equivalent may be possible if voltage, capacity, size, terminal position, and charging requirements all match. Always verify compatibility before substituting another model.
