Description
SEL CB19-12 12V 19AH AGM Battery Replacement
The SEL CB19-12 replacement battery is a 12 Volt 19 Amp-hour sealed lead-acid battery with Nut and Bolt terminals built to meet or exceed OEM specifications for the original CB19-12 model. Manufactured with Absorbent Glass Mat (AGM) technology, it offers reliable power for standby and cyclic applications requiring long service life and maintenance-free operation.
This 12 Volt battery is used in the Stanley Portable Power 1200 Peak Battery Amps Jump Starter 500 Watt power inverter 120 PSi air compressor replacement battery model SEL CB19-12 12V 19AH AGM Battery Replacement upgraded to the 12 Volt 22 Amp Hour.
✅ Key Features
- Maintenance-free AGM design — no acid spills or watering needed.
- High performance plates deliver reliable deep-cycle and standby power.
- Rugged ABS case resists vibration and shock.
- Wide temperature tolerance for demanding indoor or outdoor use.
🔋 Common Applications
- Uninterruptible Power Supply (UPS)
- Wheelchairs & Mobility Scooters
- Alarm and Security Systems
- Emergency Lighting & Exit Signs
- Portable and Backup Power Systems
📐 Specifications
| Model / Reference | SEL CB19-12 |
|---|---|
| Nominal Voltage | 12 Volts DC |
| Capacity (20-hour rate) | 19 Ah |
| Chemistry | AGM VRLA (Sealed Lead-Acid) |
| Terminals | F2 Fast-on 0.25 inch spade connectors (common) |

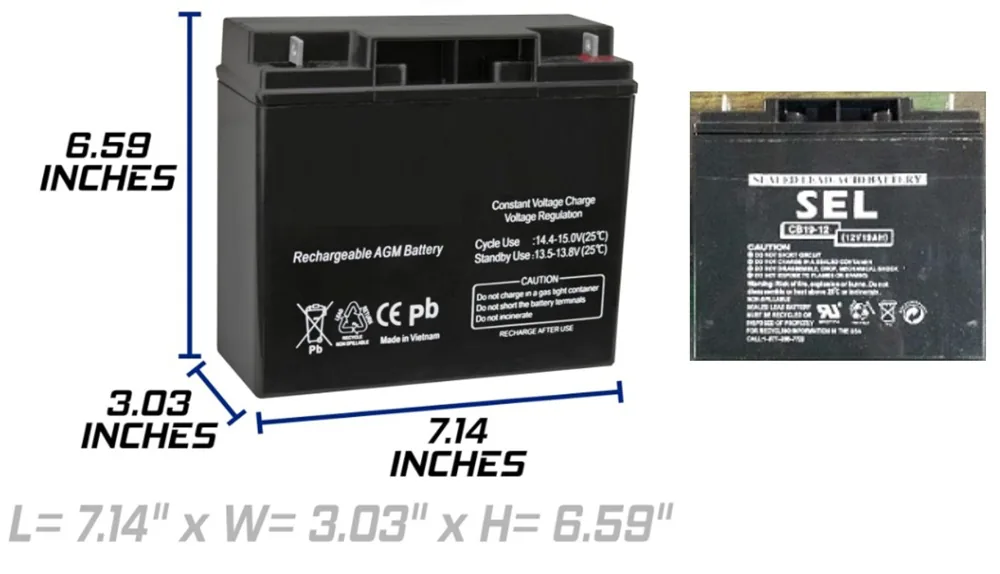

| Dimensions (L × W × H) | 7.13″ × 3.03″ × 6.57″ (181 × 77 × 167 mm) |
| Approx. Weight | ≈ 13.0 lb (5.9 kg) |
| Cycle Life (50% DOD) | ≈ 500 cycles typical |
| Operating Temperature | –20 °C to +50 °C (–4 °F to 122 °F) |
📦 What’s Included
- (1) 12 V 19 Ah AGM battery replacing SEL CB19-12 and equivalents
⚙️ Installation & Use
- Turn off power and disconnect the old battery carefully.
- Note polarity and terminal size (F2 0.25″ or F1 0.187″).
- Insert and connect the replacement battery with matching terminal adapters if needed.
- Allow a full charge cycle before testing or load use.
Tip: Test emergency systems monthly and replace batteries every 3–5 years for best performance.
🚚 Shipping & Availability
In-stock and ready to ship from U.S. distribution centers. Bulk and contractor pricing available — contact at 954-247-8798.
❓ FAQ
Is this a direct replacement for SEL CB19-12?
Yes — it meets the same voltage, capacity, and dimensions as the original battery and fits most devices using a 12 V 18–20 Ah AGM format.
What is the expected lifespan?
Typically 3–5 years in standby use with proper charging and temperature control.
Do I need F1 or F2 terminals?
Most units use F2 (0.25″) spade connectors. Adapters are available if your device requires F1 (0.187″).
