ODX-AGM27F Odyssey Battery

€ 489,99

ODX-AGM27F Odyssey Battery Deep-Cycle AGM 12 Volt

Out of stock

Check the match before ordering

  • Part numberMatch the complete number, including letters and suffixes.
  • Electrical specificationConfirm voltage, chemistry and charging requirements.
  • Physical fitCompare dimensions, connector, polarity and terminal position.
Part / SKU
ODX-AGM27F
Brand
N/A
Categories
,

Description

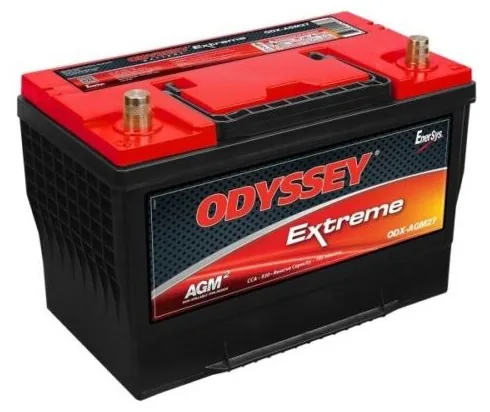

ODX-AGM27F Odyssey Battery

Positive on Right replaces the NSB-AGM27F

Odyssey Extreme Battery, ODX-AGM27F, 930CCA, Group 27F Battery is top of the line AGM Non spillable design. High cranking and deep cycle reserve power.

Specifications:
Length 12.50 in
Width 6.80 in
Height (terminals included) 8.80 in
Height (container) 8.20 in   Weight 68

Voltage 12
Pulse (5 second) Hot Cranking Amps (PHCA) 1750
Cold Cranking Amps (CCA) 930
HCA 1290
MCA 1080
20Hr Nominal Capacity (Ah) 92
10Hr Nominal Capacity (Ah) 88
Reserve Capacity Minutes 195
Terminal SAE
Torque Spec in-lbs (Nm max) N/A
Internal Resistance (mΩ) 2.6
Short Circuit (A) 5000
Operating Temperature Range -40°F / -40°C to 176°F / +80°C
Optimum Storage Temperature 68°F / +20°C

ODX-AGM27F ODYSSEY batteries are made of pure virgin lead (unlike the lead alloy in most batteries) and has more plates. More pure lead  plates provide more plate surface area which means much more power. Typically 2 times the overall power and 3 times the life of conventional batteries  as well as up to 400 cycles at 80% depth of discharge. Call for bulk discounts.
