Description

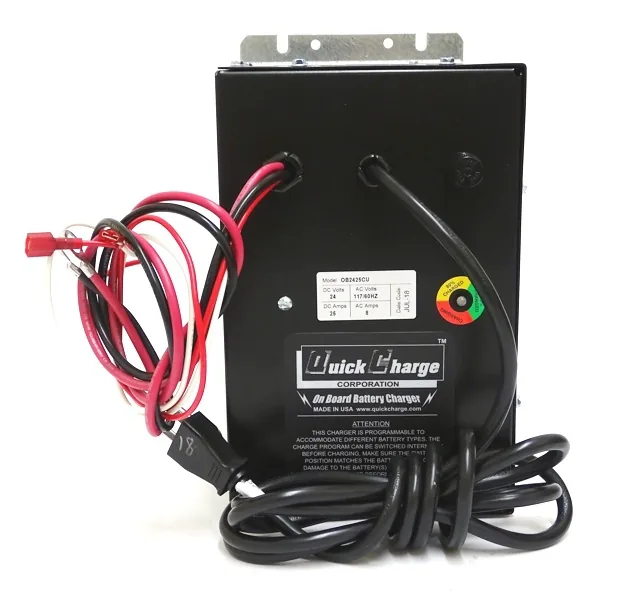

OB2425CU Cushman Charger 892860 Replacement 24 Volt 25Ah
Built to order directly by Quick Charge the OB2425CU Cushman Charger 892860 Replacement 24 Volt 25Ah is by Quick Charge for Cushman Charger. The Quick Charge On Board chargers are compact for their power output, and can mount in any direction, on scissor lifts, floor scrubbers, standby generators, pallet jacks, electric vehicles, or anything that would benefit from an on-board battery charger.
Replaces the following part numbers: 892860, 899320, 898340, 898323, 50PR35 and 24Lc25-8Et Lester charger 16940.
This charger is vibration resistant, and totally enclosed in a die cast enclosure, to resist the effects of water, dirt, or a harsh environment. They are energy efficient, up to 25% more so than ferroresonant chargers. Best of all, they are made in the USA. These are built to order by the manufacturer, so allow about a week lead time.

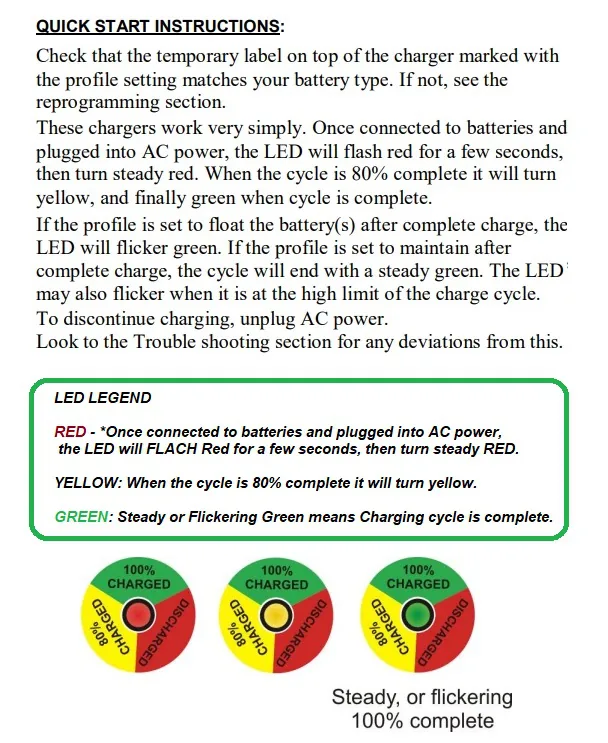

The LED indicates charger status. These units are DC current limiting and polarity protected. They are energy efficient, up to 25% more so than ferroresonant chargers. They come with the interlock connections. This 24 volt 25 amp is built to order by the manufacturer, so allow lead time.
Dim (LxWxH): L 8.25″ x 6.” x 11″ 9.0″
AC Input: 117 VAC 6 Amps
Output: 24 VDC 25 Amps
Temp Range: 32F to 104F
Float Voltage: 27.1
- Product Features
- For use with Lead Acid batteries
- Battery type LED indicator
- Designed for tough duty applications
- Dependable, rugged construction
- Water resistant
• Fully automatic with float maintenance
• Reverse polarity spark free operation
• Return to charge maintenance mode
| Specifications: | Features: | |
| Dim (LxWxH): | 8.25 x 6.0 x 11.0 | Programmable |
| Actual Weight: | 28.0 | Temperature Compensation |
| Ship Weight: | 30.0 | Reverse Polarity Protection |
| AC Input: | 117 VAC | LED Indicator |
| AC Current Draw: | 6 Amps | TriColor LED Indicator |
| Output: | 24 Volt 25 Amp | Short Circuit Protected |
| Warranty: | 3 Years | Made In USA |
