NS60L (46B24L) Battery Replacement

Description

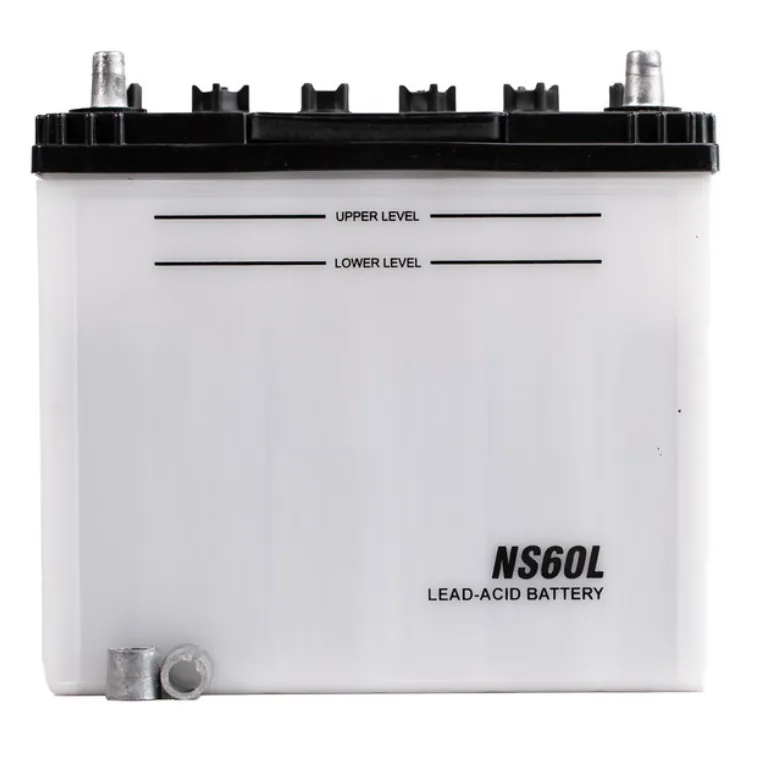

Yuasa NS60L (46B24L) Battery Replacement

Need a dependable replacement for a Yuasa NS60L (46B24L)? This model follows the JIS (Japanese Industrial Standard) sizing format, commonly used in many Asian-vehicle applications and select imports. The most important detail is the “46B24L” designation:

• B24 indicates the case size class (critical for fitting the battery tray and hold-down).

• L indicates terminal polarity orientation when facing the posts (typically positive on the left).

• 46 relates to a JIS performance rating (helpful, but fitment and polarity come first).

• Ships Dry must obtain acid locally

Confirm Before You Order

To avoid returns and delays, verify these items on your current battery:

• Case size / footprint: Must match B24 (or the exact dimensions of your existing battery)

• Terminal layout: Must match “L” orientation

• Terminal type: Confirm JIS pencil posts vs standard SAE posts (varies by vehicle/battery)

• Hold-down style & height clearance: Ensure hood and bracket clearance

Common Uses

The NS60L / 46B24L style battery is often found in vehicles using JIS sizing. Fitment can vary by year/trim, so matching your existing battery label and measurements is the safest approach.

Need Help Matching It?

If you share a photo of your current battery label (or the vehicle year/make/model), we can help confirm the correct cross-reference and the best replacement option.

---

Suggested Price (placeholder)

$149.99–$199.99 (depends heavily on brand/tier, warranty, and terminal type)

---

FAQs

Q: What does “46B24L” mean on a battery?
A: It’s a JIS size code. B24 is the case size class, and L indicates the left-side positive terminal orientation when facing the posts.

Q: Is NS60L the same as 46B24L?
A: NS60L is a model naming style that commonly cross-references to the 46B24L JIS size category, but you should still match dimensions and terminal orientation.

Q: What’s the most important thing to match for replacement?
A: Case size (B24) and polarity orientation (L vs R) first—then terminal type and height.

Compatible Batteries (JIS/Pencil Post):
JIS 46B24L
JIS 50B24L
JIS 55B24L
Yuasa YBX3053

Compatible Batteries (SAE/Standard Post):
JIS 46B24L(S)
JIS 50B24L(S)
JIS 55B24L(S)
Yuasa YBX3053
