Interacter Charger LSX 4805 Replacement

Description

Interacter Charger LSX 4805 Replacement QP4815

This new replacement for the Interacter LSSX4805 is the QuickCharge QP4815 48 Volt 15 Amp Made in the USA

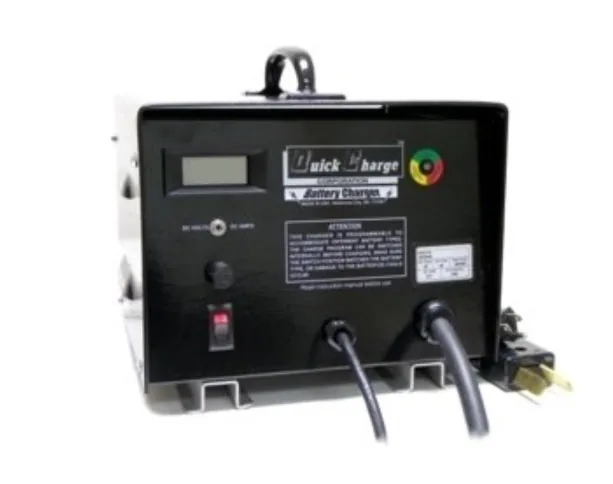

Now the new QP4815 Quick Charge Portable 48 Volt 15 Amp Charger

QP4815 Quick Charge Portable chargers are heavy duty and are perfect for use in floor scrubbers, golf carts, electric vehicles, personnel carriers, pallet lifts, material handling, and other industrial applications that would use a portable battery charger.

They are energy efficient, up to 25% more so than ferroresonant chargers, and are designed for quiet, continuous use. They are internally dip switch programmable for four charge profiles. Come with Ring Terminals. They are made in the USA and built to order by the manufacturer, so allow about 2 to 4 weeks lead time.

Can Replace: Interacter ICS4820 ICS-4820 charger

Internally Selectable Charge Profiles
True GELS and starting batteries in standby. Float (55.2 V ).
Deep cycle batteries, wet, frequently used. Absorption (61.2 V), shut off.
Deep cycle batteries, wet, infrequently used. Absorption (61.2 V), float (54.24 V).
AGM, sealed lead acid batteries. Absorption (58.8 V), float (54.24 V).
LITHIUM ION – to be factory programmed.

QP4815 Charger Specifications:

• Dim (L x W x H inches): 10.0 x 9.5 x 8.5
• AC Input: 117 VAC
• AC Current Draw: 10 Amps
• Output: 48 Volt 15 Amp
• Terminals: Ring Terminals
• Weight: 32 lbs
• Warranty: 3 Years

Features:
LCD Volt/Amp Display
Thermal Protection
Reverse Polarity Protection
LED Indicator
Short Circuit Protected
Made In USA
