Sale!
Dynasty Battery UPS12-305PLP C&D

Other

Dynasty Battery UPS12-305PLP C&D

Original price was: $349.99.Current price is: $279.99.

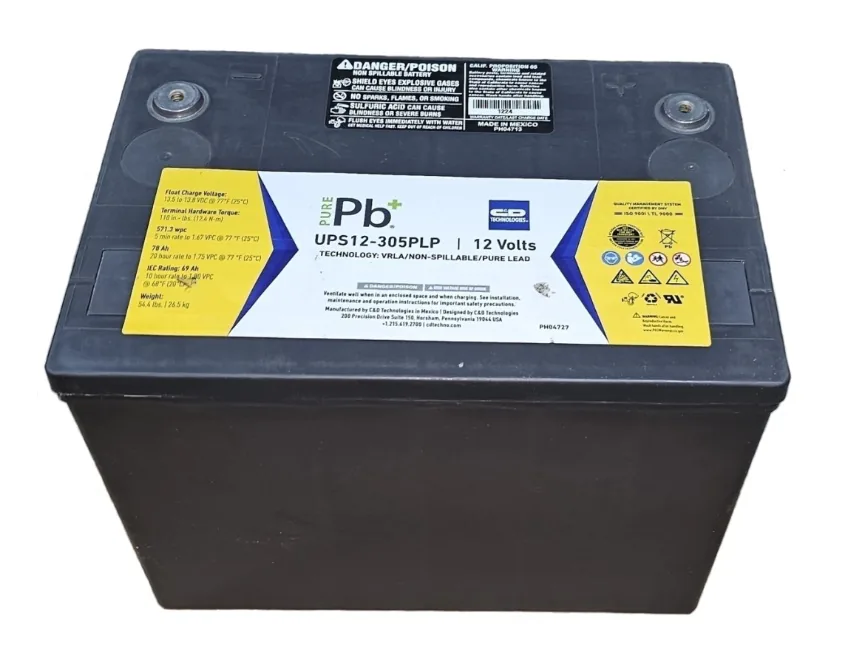

Dynasty Battery UPS12-305PLP 12V 80AH AGM UPS Battery

In stock

30-day easy returns
Dispatches in 1-2 business days
Guaranteed safe checkout with PayPal and major cards

Check the match before ordering

  • Part numberMatch the complete number, including letters and suffixes.
  • Electrical specificationConfirm voltage, chemistry and charging requirements.
  • Physical fitCompare dimensions, connector, polarity and terminal position.
SKU
UPS12-305PLP
Brand
N/A
Category

Description

Dynasty Battery UPS12-305PLP C&D

Dynasty Battery UPS12-305PLP C&D Dynasty Battery C&D Pure Lead Plus Series UPS12-305PLP AGM Battery Flame retardent

  • 12 Volt 80 AH
  • AGM Flame retardent Case
  • Size: 10.27″L x 6.83″W x 8.01″H
  • 12+ year design life @ 25˚C

Replaces UPS12300, UPS12-300MR UPS12-270FR & MR12-300 & CSB GPL12280 Enersys 12HX300-FR, HX300, HX300-12FR, 12HX300

UPS12305PLP spec sheet

UPS12-305PLP C&D BATTERIES

The UPS12-305PLP Series boasts an extended lifespan capable of providing true deep cycle power. This battery is built with C&D’s premier no leak AGM battery technology. The C&D UPS12-305PLP Pure Lead Plus batteries were created to help ensure long term performance to reliably deliver standby power when average conventional units fail. Power Storage Solutions is an official authorized distributor for the OEM C&D Technologies UPS12-305PLP Pure Lead Plus Series battery.

UPS12-305PLP FEATURES AND BENEFITS

  • Advanced Pure Lead Paste Processing extends service life by 2 years compared with conventional VRLA technologies
  • Published rates to 1 min at end of life
  • Extended life at elevated ambient temperatures
  • Store for 1 year at 77 °F without boost charging
  • 12+ year design life @ 25˚C
  • Absorbent Glass Mat (AGM) technology for efficient gas recombination
  • Patented Long Life Alloy
  • Minimized grid growth, reduced gassing, and extended battery life
  • Patented UL Recognized Flame arresting vents in each cell for safety
  • Designed with the same recombination, thermal runaway prevention, gassing and flame retardant characteristics of the Telcordia SR-4228 compliant TEL Series products
  • Flame retardant polypropylene case and cover compliant with UL94-V2
  • Advanced proprietary plate processing technology for high active material utilization – results in low float currents
  • Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
  • Can be operated in any orientation

UPS12-305PLP SPECIFICATIONS

  • Voltage: 12 volt
  • Amp Hour: 80 AH at the 20 hour rate
  • Terminal Type: Threaded copper alloy insert
  • Normal operating temperature range: +74°F (+23°C) to +80°F (+27°C)
  • Float charging voltage: 13.65 ± 0.15 VDC average per 12V unit
  • Flame retardant case and cover meet UL 1778
