Description

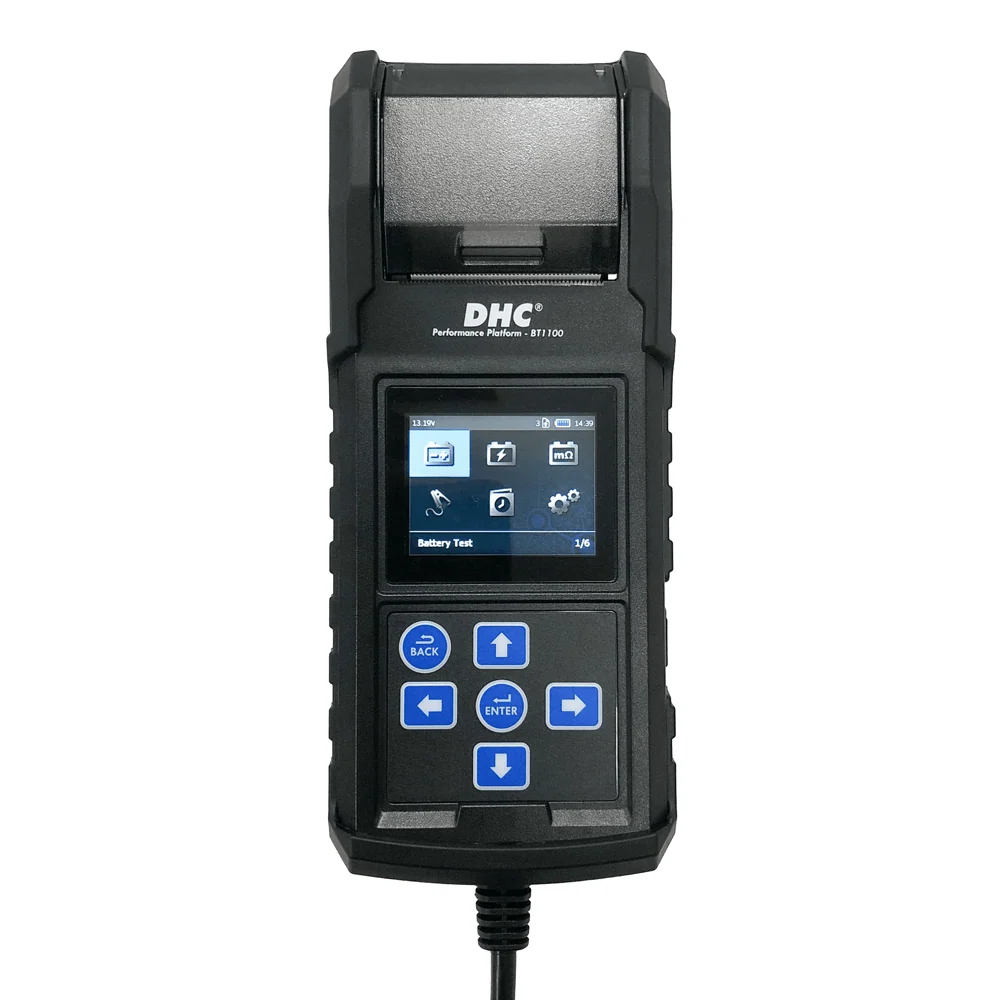

The BT1100 from DHC is a hand-held battery and electrical system tester engineered to be accurate, fast, and easy to use. The BT1100 is equipped with DHC’s latest operating system and comes with in-field firmware update support. The color LCD maximizes usability and flexibility. The screen is also able to display cranking voltage graphs for easier judgement. The built-in thermal printer provides printed results for your customers with customizable shop or business information printed on each report.
Built with decades of battery testing know-how, the DHC BT100 is the go-to choice for small and medium garages and service centers.
Features
Battery, Cranking, and Charging System Tester
– 6V and 12V battery tests
– 12V START-STOP battery test
– 12V and 24V cranking/charging system test
– Internal resistance tests
Get Result in Seconds
Accurate battery condition can be delivered in seconds. Test procedures have been optimized for easy operation.

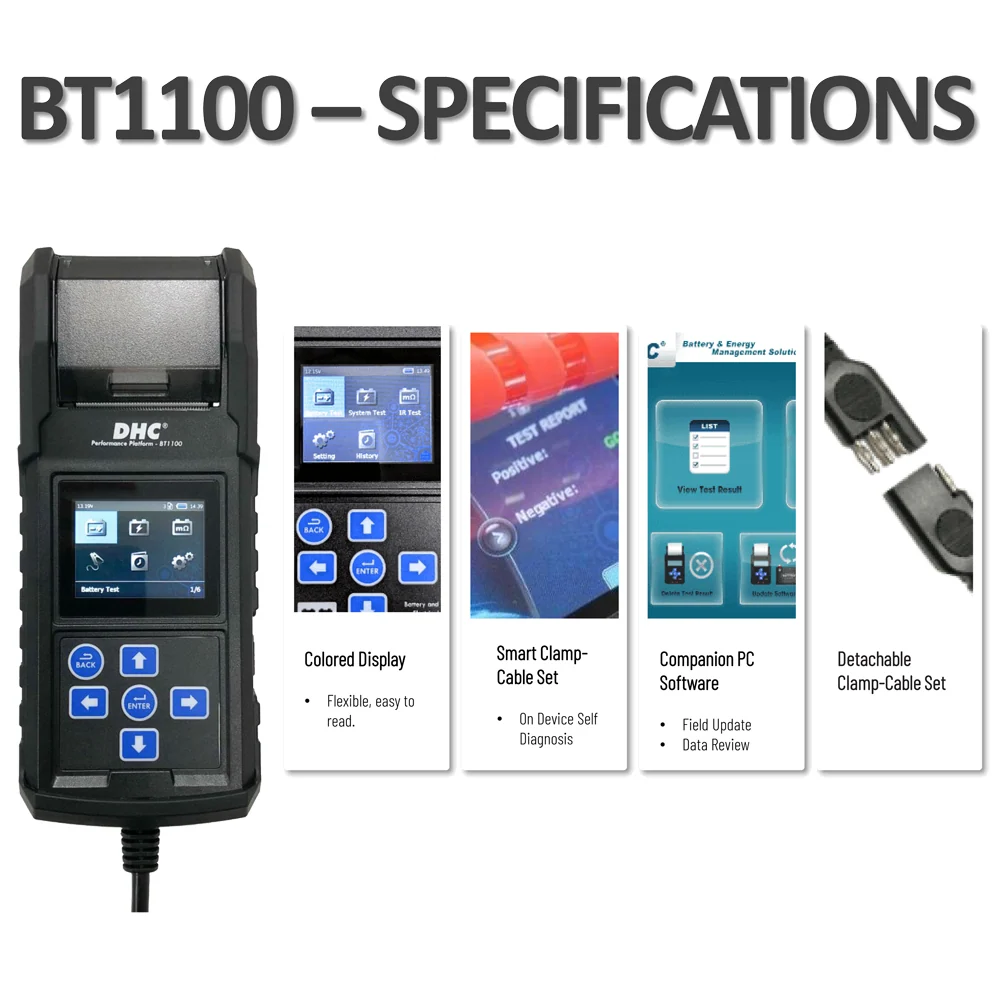

Intuitive Graphical User Interface
– Color TFT-LCD display
– Virtual keyboard for fast input
– Clear and friendly interface
In-Field Update
Update firmware in-field via PC Software – the BT1100 is ready for future battery technologies and additional functionality
Companion PC Software
– Test result download
– Test result management
– Test result export
– Firmware update
On-Tester Clamp-Cable Diagnostics
Built-in clamp and cable diagnostic capability to confirm component performance and test accuracy

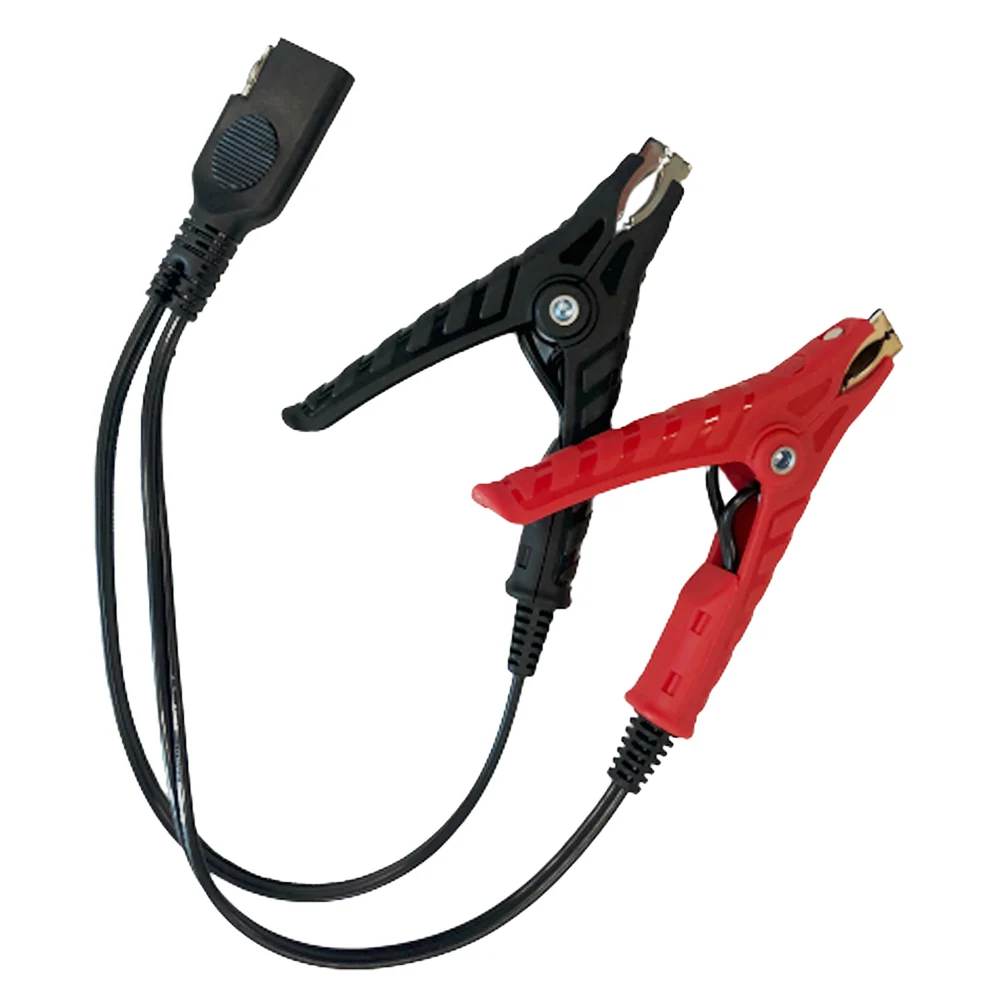

Field-Replaceable Clamp Sets
All BT2400 Series testers now feature easily replaceable clamp sets that plug into the tester lead set with a standard flat plug. If clamps become damaged, simply order replacement clamp set PN .
12-Month Warranty

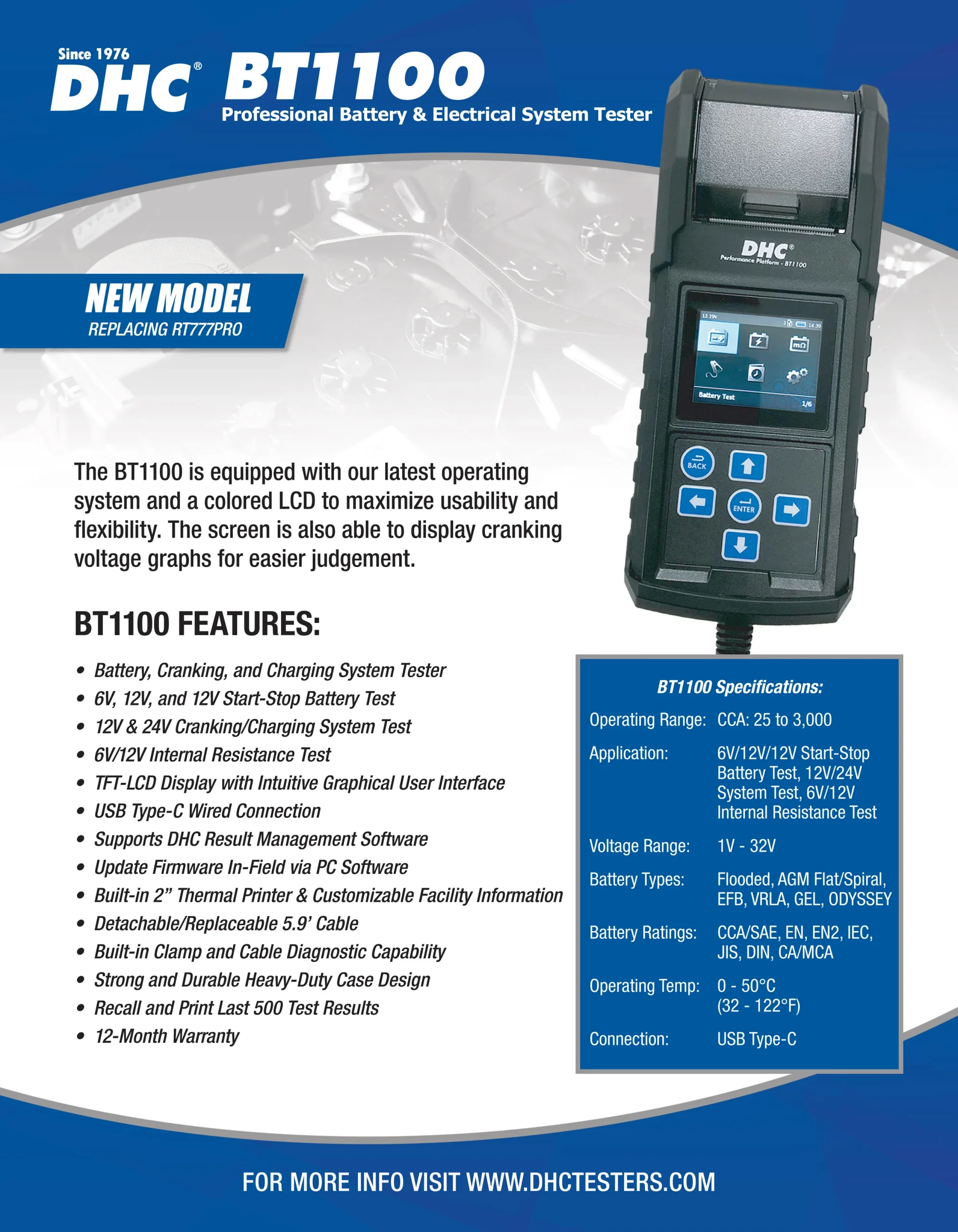

Specifications

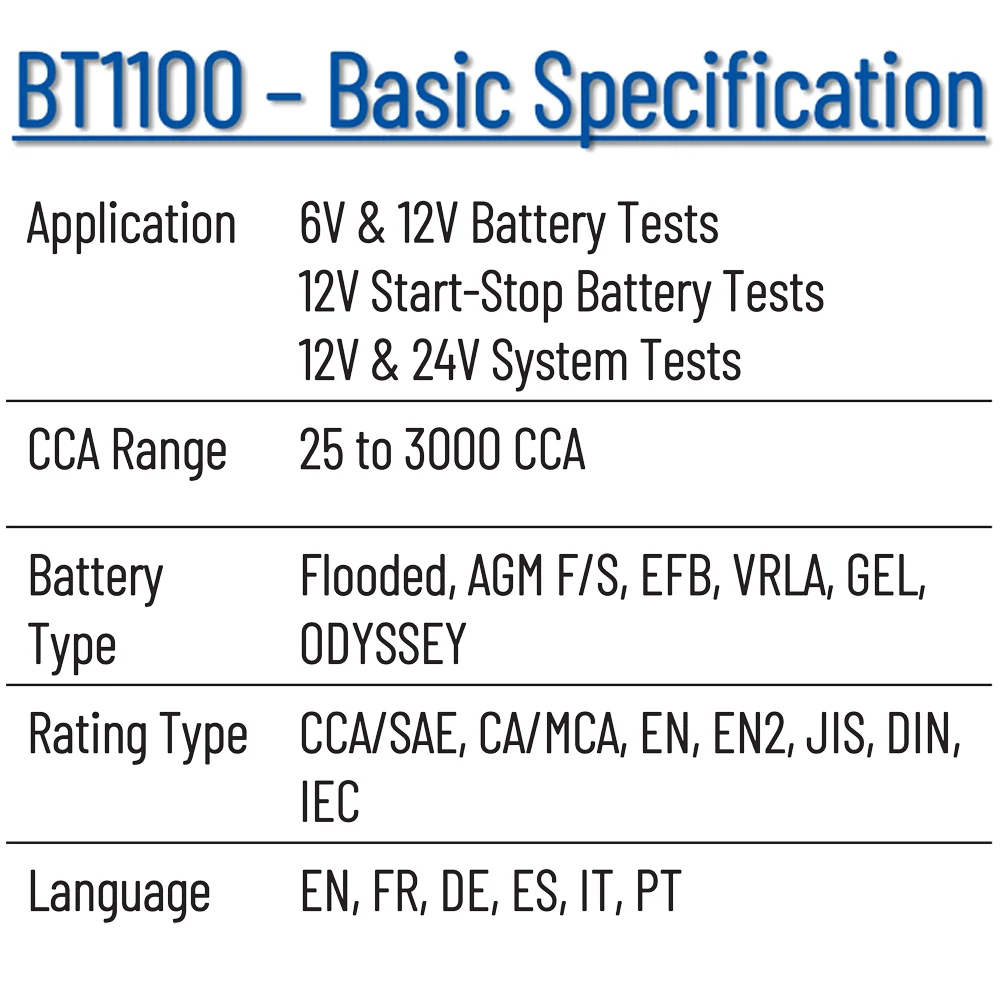

DHC BT1100 Specifications
Battery Test: 6V, 12V
Start-Stop Battery Test: 12V
Cranking/Charging System Test: 12V, 24V
Internal Resistance Test: 6V, 12V
Supported Battery Types: Flooded, AGM Flat Plate, AGM Spiral Plate, EFB, VRLA, GEL Odyssey
Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
Operating Range: 25 to 3,000 CCA (SAE)
Voltage Range: 1V to 32V
Operating Temperature: 0-50°C (32-122°F)
Sensor Array: N/A
Input Device: 6-key keypad (up, down, left, right, enter, back)
Display: TFT-LCD Color Display with Intuitive Graphical User Interface (240×320)
Test Code and Test Counter: Yes – Recall and Print Last 500 Test Results
Built-in Clamp and Cable Diagnostics: Yes
Clamp-Cable Set Length: 5.9 ft
Detachable Clamps: Yes (replacement PN )
Voltage Probe: N/A
Amp Clamp: N/A

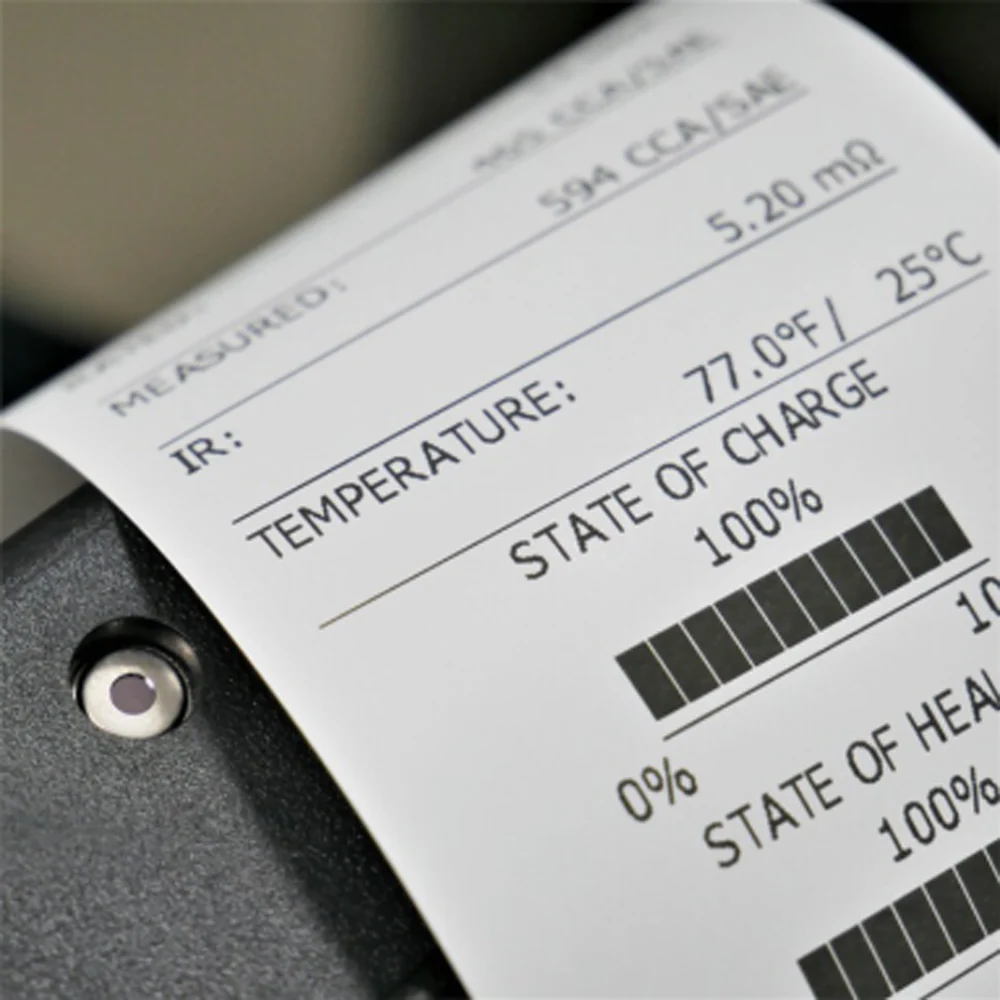

Printer: 2-inch thermal printer
Internal Battery Support: AA Alkaline
Wireless Connection: N/A
Wired Connection: USB Type-C
PC Software: Yes, Supports DHC Result Management Software
Firmware Update: Yes, In-Field via PC Software
Cloud Data Management: N/A
Dimensions (L x W x H): 10.1 x 4.3 x 3.2 in (256 x 108 x 81 mm)
Operating Languages: English, French, Spanish, German, Italian, Portuguese
What’s in the Box
– BT1100 Tester
– Thermal Printing Paper (uses standard 2.25″ thermal printer paper, available at any office supply store)
– AA batteries
– Hard-Shell Protective Carrying Case
