Description

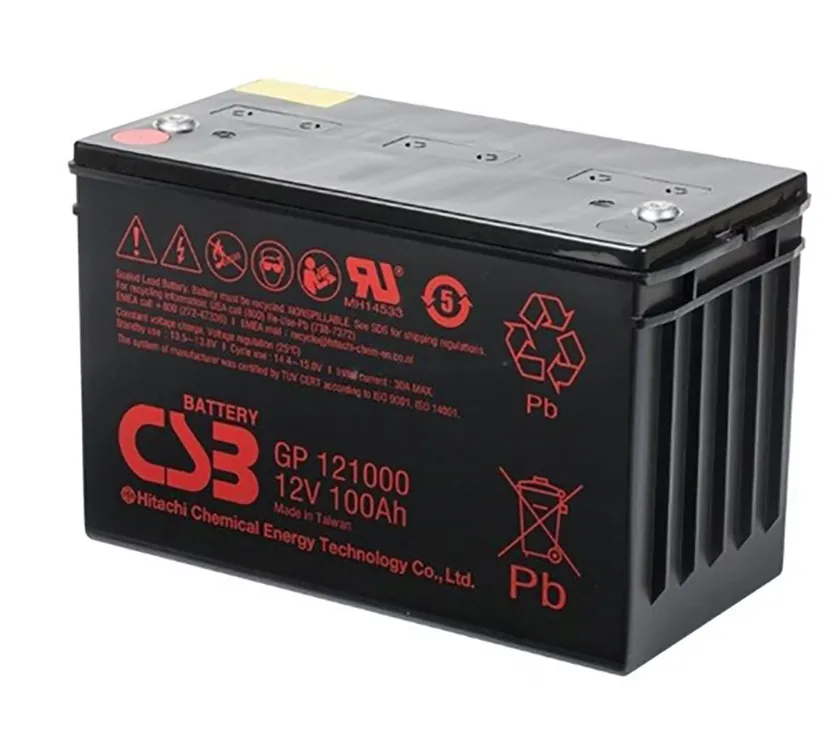

CSB GPL121000 Battery – 12V 100Ah VRLA AGM Long Life Battery
The CSB GPL121000 Battery is a 12V 100Ah sealed lead-acid battery designed for dependable
standby and backup power applications. As part of CSB’s GPL Series, this VRLA AGM battery is commonly used
in UPS systems, telecom backup power, emergency systems, security equipment, medical backup systems,
industrial controls, and other applications that require reliable reserve power.
Because the GPL121000 uses sealed VRLA AGM technology, it offers maintenance-free operation and dependable
performance in float service applications. It is a strong choice when you need a long-life 12V 100Ah battery
for equipment that must remain ready during power interruptions.
Quick Answer: What is the CSB GPL121000 Battery?
The CSB GPL121000 is a 12V 100Ah VRLA AGM sealed lead-acid battery built for long-life standby service.
It is commonly used in UPS backup systems, telecom power systems, emergency power equipment, security
systems, and other backup power applications.
Key Features
- Brand: CSB Battery
- Model: GPL121000
- Voltage: 12V
- Capacity: 100Ah @ 20-hour rate
- Battery type: VRLA AGM sealed lead-acid
- Application: Standby power and backup power systems
- Maintenance: Sealed, maintenance-free design
- Design life: Up to 10 years in standby service at 25°C
- Terminal: I2 threaded lead alloy terminal designed to accept M6 bolt
Specifications
| Manufacturer | CSB Battery |
|---|---|
| Model | GPL121000 |
| Nominal Voltage | 12V |
| Nominal Capacity | 100Ah @ 20hr-rate to 1.75V per cell at 25°C |
| Battery Chemistry | Sealed Lead Acid / VRLA / AGM |
| Terminal Type | I2 threaded lead alloy terminal to accept M6 bolt |
| Maximum Charge Current | 30A |
| Maximum Discharge Current | 800A |
| Internal Resistance | Approx. 3.2 mΩ |
| Length | 343.0mm / 13.50in |
| Width | 170.0mm / 6.69in |
| Height | 216.9mm / 8.54in |
| Weight | Approx. 33.50 kg / 73.83 lb |
| Design Life | Up to 10 years in standby service at 25°C |
| Float Charging Voltage | 13.5V to 13.8V per battery at 25°C |
| Equalization Charging Voltage | 14.4V to 15.0V per battery at 25°C |
| Case Material | PP UL 94-HB; flame-retardant 94-V0 version available upon request |
Common Applications
The CSB GPL121000 battery is often used in equipment that requires dependable standby power. Before ordering,
always confirm the battery model, voltage, dimensions, terminal type, and required quantity in your system.
- UPS battery backup systems
- Telecom backup power systems
- Emergency power systems
- Security and alarm systems
- Industrial control backup systems
- Medical and critical standby equipment
- Power protection and reserve power applications
Why Choose a CSB GPL Series Battery?
CSB GPL Series batteries are designed for long-life standby service. In addition, the sealed AGM construction
helps provide dependable performance without routine water maintenance. As a result, the GPL121000 is a good
replacement option for many backup systems that need a reliable 12V 100Ah battery.
Important Fitment Note
Please verify your original battery model before ordering. The CSB GPL121000 is a 12V 100Ah battery with
specific dimensions and terminal configuration. If your equipment uses a different terminal, case size, or
flame-retardant case requirement, contact BatteryPlex before placing your order.
Need the Fire-Retardant Version?
Some installations require the CSB GPL121000FR version with a flame-retardant case. If your
system or facility requires the FR version, please confirm that requirement before ordering so the correct
battery can be quoted.
BatteryPlex Support
BatteryPlex.com supplies replacement batteries for UPS systems, emergency equipment, telecom backup systems,
and specialty power applications. If you are not sure whether the CSB GPL121000 is the correct battery for
your equipment, send us the model number or a photo of your existing battery label and terminals.
CSB GPL121000 Battery FAQs
What voltage and capacity is the CSB GPL121000?
The CSB GPL121000 is a 12V 100Ah sealed lead-acid VRLA AGM battery.
What is the CSB GPL121000 used for?
The CSB GPL121000 is commonly used in UPS systems, telecom backup power, emergency power systems,
security systems, and other standby power applications.
Is the CSB GPL121000 maintenance-free?
Yes. The GPL121000 uses sealed VRLA AGM technology, so it is maintenance-free and does not require watering.
What are the dimensions of the CSB GPL121000 battery?
The CSB GPL121000 measures approximately 343mm long, 170mm wide, and 216.9mm high.
What terminal does the CSB GPL121000 use?
The CSB GPL121000 uses an I2 threaded lead alloy terminal designed to accept an M6 bolt.
Is there a fire-retardant version of the CSB GPL121000?
Yes. A flame-retardant case version may be available upon request. If your system requires the FR version,
ask for the CSB GPL121000FR before ordering.
Can BatteryPlex help confirm compatibility?
Yes. If you are unsure whether this battery fits your equipment, send BatteryPlex the model number or a photo
of the existing battery label and terminals before ordering.
Verify standard GPL121000 vs GPL121000FR before quoting. FR case may be required for some UPS, data center, telecom, or fire/security applications.
