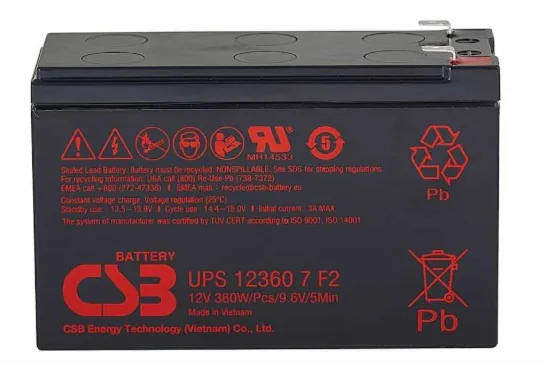

CSB Batteries UPS123607 – 12V AGM UPS Battery
The CSB Batteries UPS123607 is a 12 Volt sealed lead acid (AGM) battery from CSB’s UPS series. It is engineered for compact uninterruptible power supplies and standby backup applications that demand strong 5-minute
high-rate performance and reliable service life. Call for stock and bulk discounts.
Key Features
- 12V high-rate AGM battery designed for small UPS systems and critical backup loads
- Latest wafer-thin plate technology for excellent 5-minute high-rate discharge performance
- Maintenance-free, sealed lead acid construction – non-spillable, safe for indoor use
- Design life of up to 3–5 years in standby service at 25°C (77°F)
- Can be used in almost any orientation (except upside down)
- Compact footprint with F2 Faston terminals for quick installation
Specifications
- Model: CSB Batteries UPS123607
- Series: UPS Series
- Voltage: 12 Volts (6 cells per unit)
- Capacity: 7
- Nominal High-Rate Output: approx. 460W @ 5-minute rate to 9.60V at 25°C (77°F)
- Chemistry: Sealed Lead Acid (AGM, valve-regulated)
- Terminal Type: F2 Faston tab 0.250″
- Weight: approx. 5.5 lbs (2.5 kg)
Dimensions
- Length: 5.94″ (150.9 mm)
- Width: 2.55″ (64.8 mm)
- Container Height: 3.71″ (94.3 mm)
- Overall Height: 3.88″ (98.6 mm)
Electrical Characteristics (Typical)
- Nominal Voltage: 12V
- Maximum Discharge Current: up to 130A (5 seconds)
- Internal Resistance: approx. 16.6 mΩ (fully charged)
- Short Circuit Current: approx. 450A
- Recommended Max Charge Current: 3.8A
- Float Charge Voltage: 13.5–13.8 VDC per unit at 25°C (77°F)
- Equalization / Cycle Charge: 14.4–15.0 VDC per unit at 25°C (77°F)
Typical Applications
- Small UPS / workstation UPS systems
- Emergency lighting and exit systems
- Fire alarm and security panels
- Telecom and communication equipment
- Substation and power plant emergency backup
- Industrial control and factory automation equipment
- General standby power where a compact high-rate 12V AGM is required
Design Life & Performance
In standby service at 25°C (77°F), the UPS123607 is rated for up to approximately 3–5 years of service life when properly maintained. The high-rate plate design allows this battery to deliver high power in a short period of time, making it ideal for UPS applications that require a strong 5-minute discharge at full load.
Operating Temperature Range
- Discharge: -15°C to 50°C (5°F to 122°F)
- Charge: -15°C to 40°C (5°F to 104°F)
- Storage: -15°C to 40°C (5°F to 104°F)
- Nominal Operating Temperature: 25°C (77°F)
Self-discharge is low; the battery typically loses less than about 10% of its charge after 90 days at 25°C (77°F) when stored in a fully charged state. Always fully recharge before returning to service after storage.
Installation Tips
- Turn off and unplug the UPS or device before servicing the battery compartment.
- Note the polarity and position of the existing battery and cables.
- Disconnect the old battery and remove it from the compartment.
- Place the UPS123607 into the battery bay, making sure it sits flat and secure.
- Connect the positive (+) and negative (–) leads to the matching F2 terminals.
- Close the compartment, restore AC power, and allow the unit to fully charge the new battery.
If you are unsure about installation or working with DC power, consult a qualified technician or service provider.
Shipping & Warranty
- Sealed, non-spillable AGM design – ships as non-hazardous for ground transport
- Packed to protect against vibration and impact in transit
- Backed by a limited warranty against defects in materials and workmanship
Cross Reference / Alternate Models*
This 12V high-rate format is commonly cross-referenced to several other part numbers in the industry, including:
- Leoch LPX12-9T2FR
- PowerSonic PHR-1236
- EnerSys NPX-35T / NPX-35TFR
- CSB UPS12580F2 / UPS12580F2FR
- Yuasa REW45-12 / REW45-12FR
- UPG UB1270FR
*Always verify voltage, capacity, dimensions, and terminal type against your original battery before substituting.
FAQ
Q: Is this an original CSB battery?
A: Yes, this product page is for the CSB Batteries UPS123607 AGM UPS battery model.
Q: How often should I replace my UPS123607 battery?
A: In typical standby UPS use, sealed lead acid batteries are often replaced every 3–5 years. High temperatures, deep discharges, or constant cycling can shorten battery life.
Q: Can I replace another 12V 7–9Ah UPS battery with the UPS123607?
A: Many small UPS units that use a 12V 7–9Ah AGM battery with F2 terminals will accept this model, but you must confirm voltage, dimensions, terminal type, and wattage rating with your UPS manufacturer or existing battery label.
