CM1A – Schauer 6/12V 1A Fully Automatic Charger / Maintainer / Conditioner 115VAC Clips & Ring Terminals

Description

Model CM1A (0757-13CEC)

Schauer Charge Master Fully Automatic 6V/12V, 1 Amp Battery Charger/Maintainer with Battery Clips and Ring Terminals. This Fully Automatic charger is for any type lead acid battery, including conventional flooded cell, maintenance free, deep cycle, gelled-electrolyte, or AGM valve regulated batteries.

2-Stage Charge Control provides Modified Constant Current Charge to a finish voltage of 7.2V (6 volt batteries) or 14.4V (12 volt batteries), then switches to a Maintenance/Float voltage to maintain battery in fully charged condition. Charger may be left connected to battery indefinitely, without danger of overcharging.

Features

• For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, AGM, & valve regulated batteries.
• Excellent for keeping batteries charged in stored vehicles – ideal for cars, motorcycles, riding mowers, snow machines, etc.
• Fully automatic, can be left on the battery indefinitely
• Charges, maintains, and conditions batteries
• Overload protection.
• Reverse polarity protection (Requires minimum of 5 volts from battery to start charger)

Specifications

• AC Input: 100-120VAC 50/60Hz
• DC Output: 1A at 6/12VDC

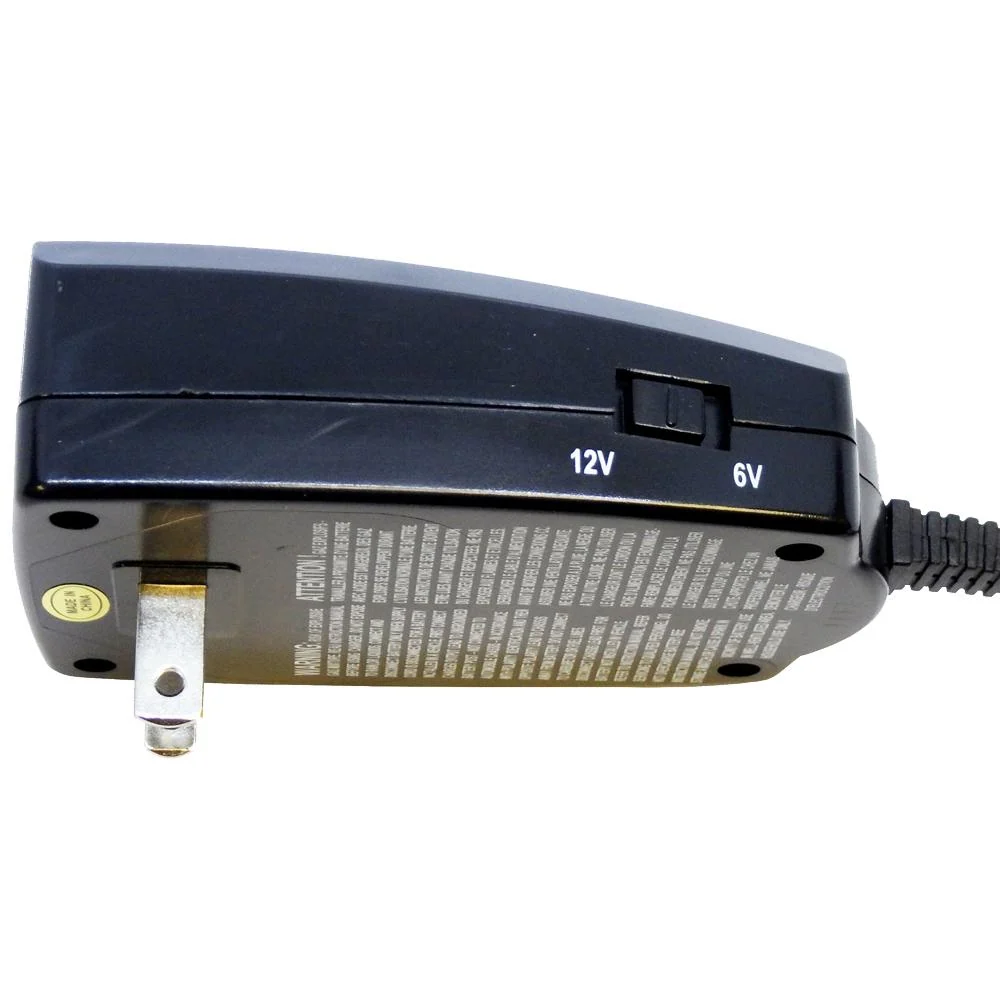

• AC Cord: N/A – Molded plastic case plugs into outlet
• DC Lead: 12 ft total length – 10 ft Lead with SAE Flat Connecter, and 2 ft battery connection adapters (battery clip adapter, and 3/8″ ring terminal adapter)
• Operating Temperature: 14° to 113°F (-10 to 45°C)
• Storage Temperature: -13° to 185°F (-25 to 85°C)
• Operating Humidity Range: 0 to 90% RH
• Cooling: Passive / Natural
• Unit Length: 3.94″
• Unit Width: 2.56″
• Unit Height: 1.42″
• Unit Weight: 1.0 lbs.
• Approvals: UL/cUL, FCC, CEC, BC
• Battery Capacity – Charging: 3-20AH
• Battery Capacity – Maintaining: 3-60AH
• Warranty: 2 Year Limited

What’s in the Box

• Wall-Mount Charger with 10 ft DC Lead (120″) terminating with standard SAE Flat Connector
• DC Lead Adapter: 2 ft (24″) with Battery Clips / standard SAE Connector
• DC Lead Adapter: 2 ft (24″) with inline 3A fuse and 3/8″ Ring Terminals / standard SAE Connector
• User Manual

Operation

• Not intended for use as a DC power supply
• Operate in an environment with proper ventilation
• Do not operate in a damp or wet environment

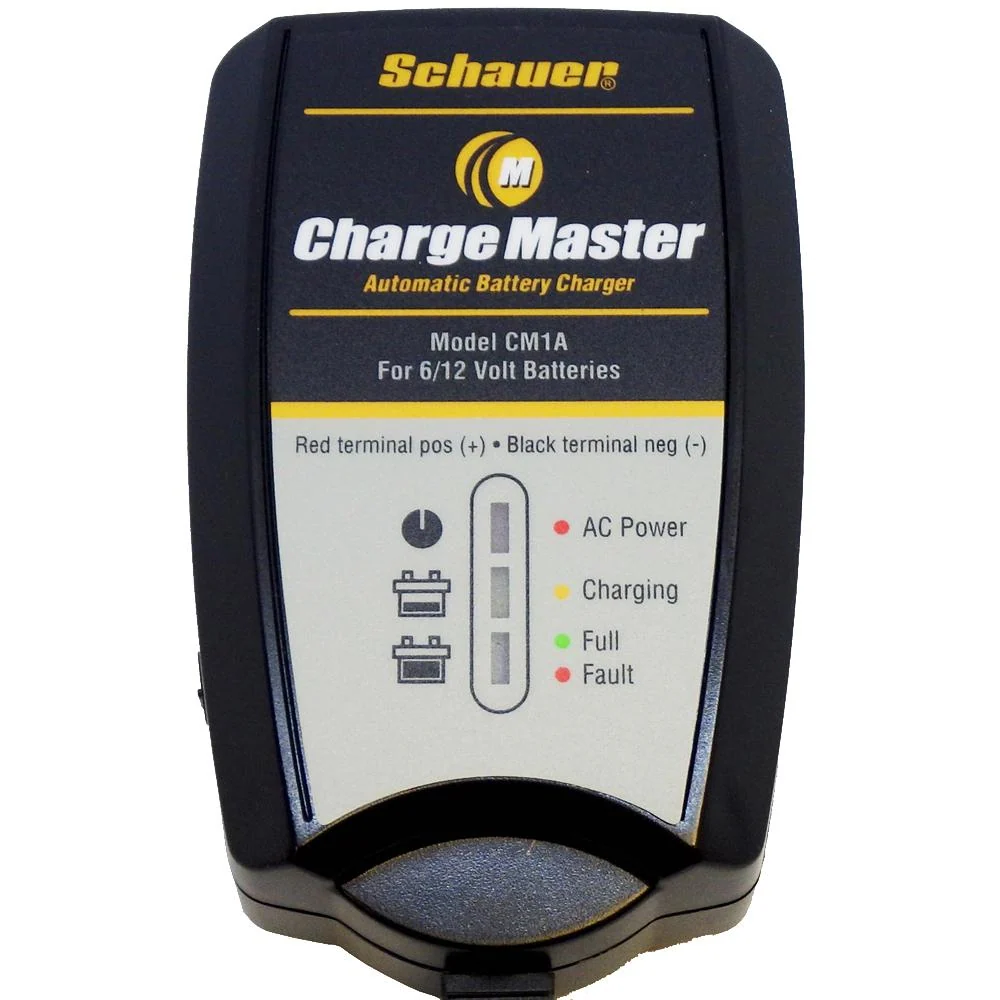

LED Status Indicator Light in normal charge cycle:
• Red LED ON – AC Power connected
• Yellow LED ON – Charge Mode
• Green LED ON – Battery charged, charger in Maintenance/Float mode

Information Downloads

CM1A User Manual
