C&D UPS12-675PLPF Battery 12V Pure Lead Plus AGM VRLA UPS
The C&D UPS12-675PLPF Battery is a premium 12 V 179 AH Pure Lead Plus (PLP) AGM VRLA designed specifically for uninterruptible power supply (UPS), data center and telecom backup applications.
Using high-purity lead plates and advanced grid alloy technology, this front-access monobloc delivers high power density, long design life and excellent reliability in critical-power environments. Special Order Only

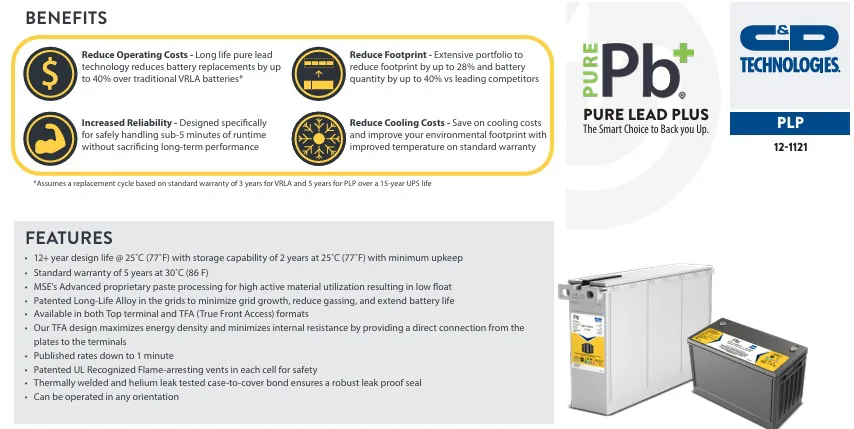

Key Features & Benefits
- Pure Lead Plus AGM technology – high-performance pure lead plates and absorbed glass mat separators for long life and high-rate capability.
- 12 V front-access design – true front terminals simplify installation, voltage checks and maintenance in cabinets and racks.
- High-rate UPS performance – rated around 675 W/cell at 15-minute rate for demanding UPS discharge profiles.
- Long design life – 12+ year design life at 77°F (25°C) when operated within recommended conditions.
- Low maintenance – sealed, valve-regulated lead acid (VRLA) design, no watering required and low self-discharge.
- Flame-retardant Poly-FR case – meets stringent safety requirements for critical facilities.
- High short-circuit capability – engineered for reliable operation in high-current UPS applications.
- Environmentally responsible – batteries are highly recyclable at the end of life.
Typical Applications
- Uninterruptible Power Supply (UPS) systems – data centers and server rooms
- Network operations centers and IT infrastructure
- Telecom and switchgear backup
- Industrial process control and automation systems
- Hospitals, labs and emergency systems
- Banks and financial institutions
- 911 / public safety and critical communications sites
- Replacement/upgrade for select C&D front-access UPS models using similar form factor

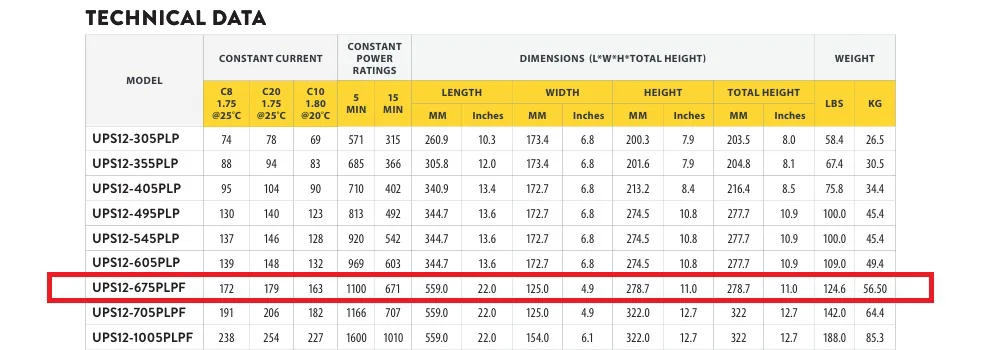

Electrical Specifications (Overview)
| Brand / Series | C&D Technologies – Pure Lead Plus (PLP) UPS Series |
|---|---|
| Model / Part Number | UPS12-675PLPF |
| Nominal Voltage | 12 V DC |
| Chemistry | Pure Lead AGM, Valve Regulated Lead Acid (VRLA) |
| Rated Power | Approx. 675 W/cell @ 15-minute rate to specified end voltage |
| Typical Capacity (C20) | Approx. 179 Ah @ 20-hour rate (reference rating) |
| Design Life | 12+ years at 77°F (25°C), when properly operated |
| Float / Standby Use | Optimized for float service in UPS and standby power systems |
| Recommended Use | High-rate UPS / standby applications (not intended as a deep-cycle battery) |
Mechanical Specifications
| Configuration | Front-access 12 V monobloc, 6 internal cells |
|---|---|
| Container Material | Flame-retardant Poly-FR |
| Terminal Type | Front threaded terminals (1/4-20 UNC hardware, torque per manufacturer) |
| Length | 22.0 in (559 mm) |
| Width | 4.9 in (125 mm) |
| Height (overall) | 11.0 in (≈278 mm) |
| Approx. Weight | 124.6 lb (56.5 kg) |
Installation & Operation Notes
- Install in an appropriate rack or cabinet that supports front-access batteries and meets local codes.
- Use a quality UPS/charger with voltage and temperature compensation settings approved for AGM/VRLA batteries.
- Maintain proper float voltage as specified by C&D for Pure Lead Plus batteries.
- Provide adequate ventilation and keep within recommended operating temperature range.
- All connections should be torqued to the manufacturer’s specifications using correct hardware.
- For replacement projects, verify rack spacing, cable lengths and connector hardware before ordering.
Why Choose the C&D UPS12-675PLPF?
If you need a front-access AGM VRLA battery that combines high power density, long design life and
trusted C&D quality, the UPS12-675PLPF is an excellent fit for modern UPS cabinets,
data centers and telecom backup systems. It helps minimize footprint and replacement intervals while
delivering dependable runtime when your critical loads need it most.
Order the C&D UPS12-675PLPF today to upgrade or replace your existing UPS battery bank with reliable Pure Lead Plus performance.
Replaces:
C&D UPS12-615MRF
C&D UPS12-615PLPF
Narada 12HRL600/-BI
GS/Yuasa SWUF590-12FR
Deka 5500
Deka 5500 ET
12XE1010F-FR
12XE1110F-FR
NSB12-450RT HR (Note NSB12-450RT HR is shorter in height, published height: 8.9″)
Leoch LHTF12-150, UPS12-675PLPF, TEL12-170F, 12V155FS, 12v170FS, SBS170F, AGM-SL 12/150, NSB12-650RT, MX+12650F
