Description

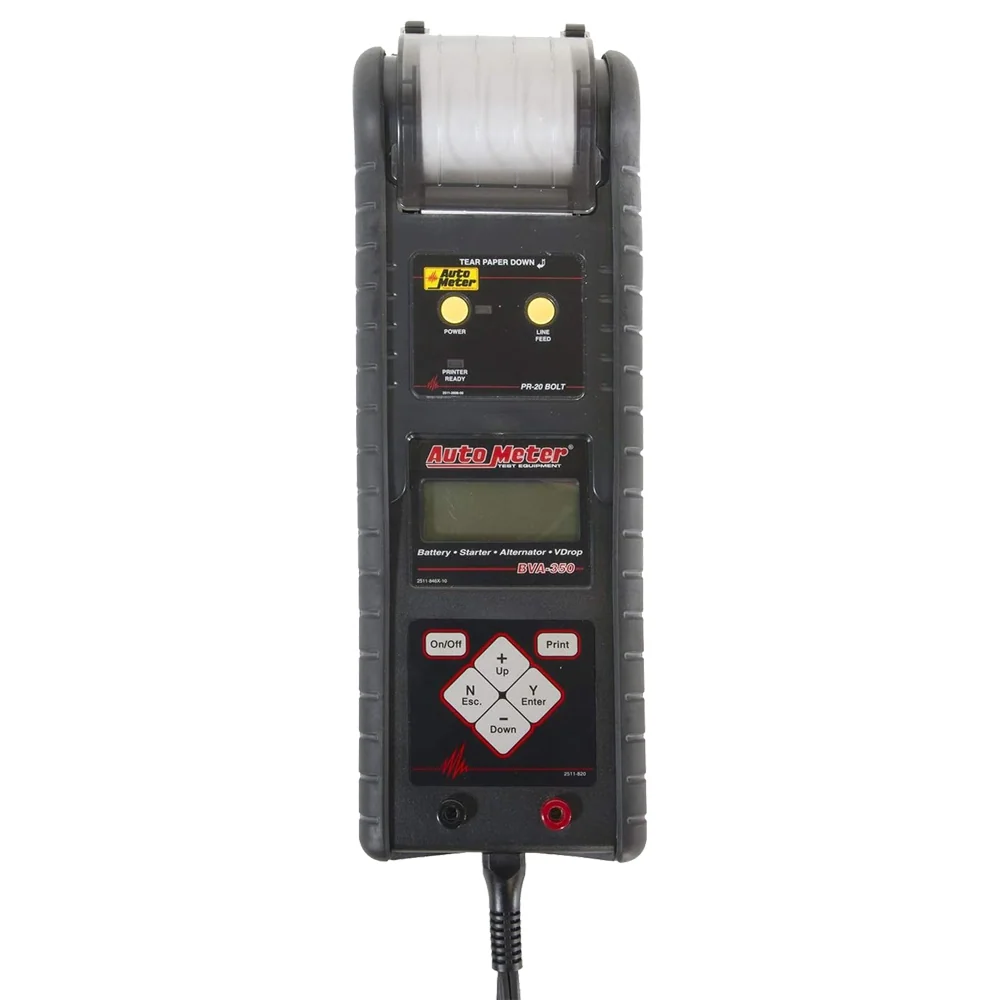

AutoMeter BVA-350PR BVA-350 Technician Grade Hand-Held System Analyzer Combo with PR-20 Printer

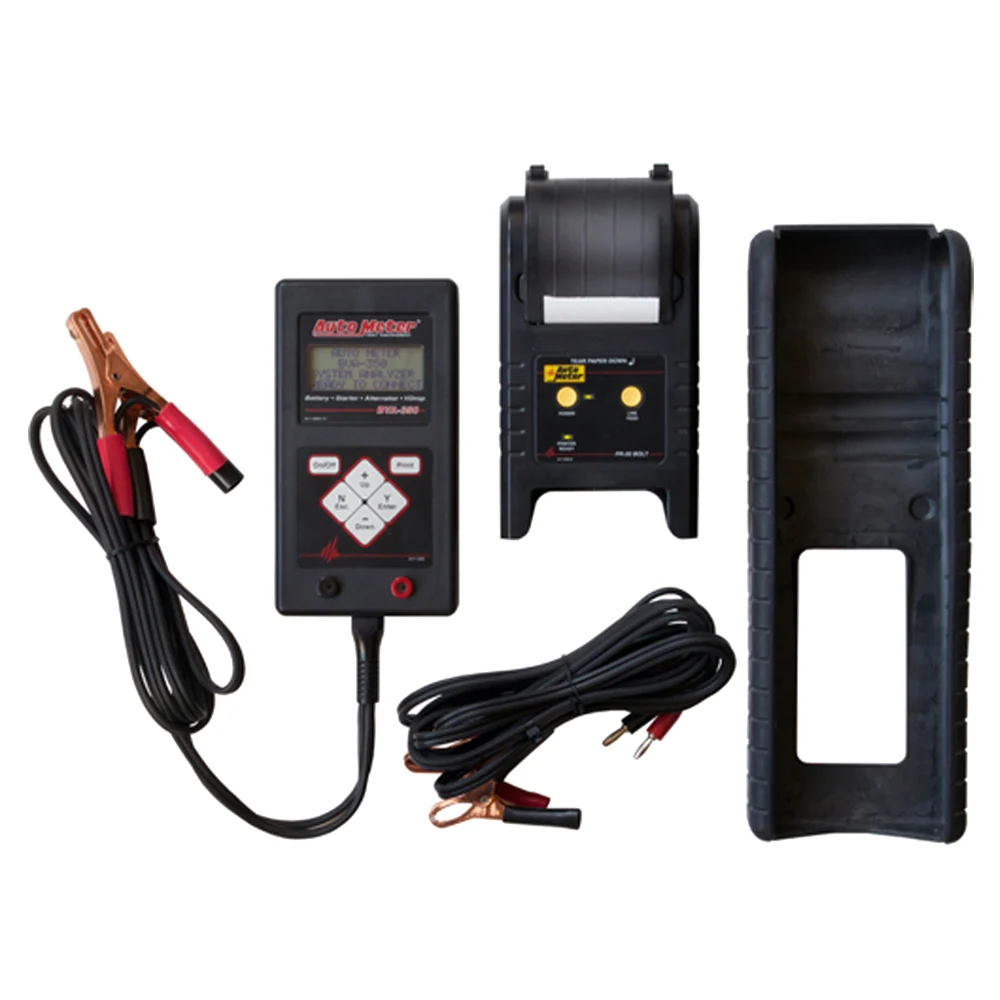

Combo Kit includes BVA-350 Electrical System Analyzer with PR-20 Thermal Printer
Hand held battery and electrical system tester with an on-board 40 Amp load for most battery and electrical systems. Performs complete electrical system test in less than two minutes. Performs voltage drop tests with included external leads.
– Best of Both Worlds – Accuracy via Patented Resistance Load & Test
– Battery Tester + Menu Driven Wire Integrity Test for any Gauge Wire
– Customer communication with optional PR-12 infrared printer or PC cable
– Stores the last 50 tests in memory
– 64 character 4 line LCD screen – 30″ – 16 gauge leads
– Tests flooded and AGM batteries
– Tests discharged batteries
– Tough plastic case with rubber easy-grip boot
– Reverse polarity protection
Features
– Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 – also detects discharged batteries, bad cells, and has built in reverse polarity protection.
– Features AutoMeter’s V-Drop Technology – this unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance. This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire. AutoMeter’s V-Drop technology prevents the need to connect additional probes and/or disable ignition or fuel systems to engage in excessive engine crank periods. In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
– AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 40 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes our products easier to use. – Automatically stores the last 100 tests in memory. –
30″ – 16 gauge leads with professional grade clamps that are easily field serviceable.
– Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
– English and Spanish language menus and test results.
– Battery test results include: Measured true CCA, voltage and percent of charge, and the battery’s state of health (good, near end of life, or bad).
– Perfect tool box tester! Rugged engineered composite housing with protective rubber boot for years of service.
– Intuitive menu driven operation, transmitted via back lit LCD screen for ease of use.
Specifications
Battery Types: Flooded & AGM
Battery Voltage: 6V & 12V
Battery Range: 100-1600 CCA
Automated Load: 40 Amp
Lead Size: 48” – 16 Gauge
Alternator Test: Yes
Stator Diode Test: Yes
Starter Draw Test: Yes
Voltage Drop Test: Yes
External Volt Leads: Yes
Memory: 100 Tests
Operational Temperature: 0-120F
Operational Humidity: 0-85%
Language: English & Spanish
Internal Battery: 9V
Dimensions: 4.5” x 7.1” x 1.4”
Weight: 1.3 lbs
Warranty: 12 Months
PR-20 Printer Information
The PR-20 is an add-on thermal paper printer for all AutoMeter portable handheld testers. The PR-20 attaches directly to the tester and features a protective boot for long service life.
– Add on thermal paper printer for all AutoMeter portable handheld testers.
– Attaches directly over the tester and is held in place by a rubber protective boot.
– Easy drop in paper replacement – uses standard 58mm thermal paper.
– Runs on a 7.4 V Li-Ion camcorder rechargeable battery (AC-113) (Typical battery life: 6000 print lines – 2 hour recharge time)
– Includes battery charger and battery charges while installed in unit.
Weight: 2 lbs
Warranty: 12 Months
