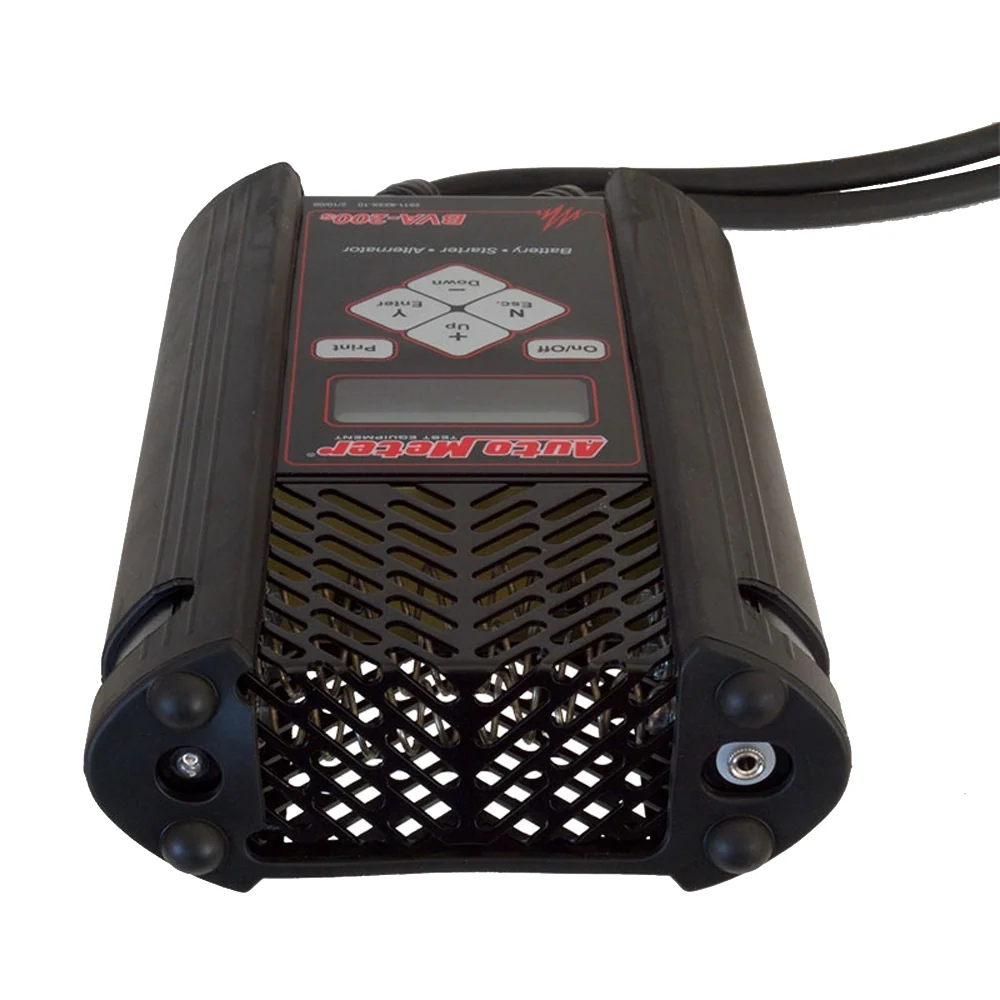

AutoMeter BVA-200S Professional Grade Intelligent Hand-Held Electrical System Analyzer for 6V & 12V Applications
The BVA-200S is a durable hand held battery and electrical system tester with an on-board 120 amp load for heavy use in a professional shop environment. This tester comes with a rugged anodized aluminum housing, rubber hand grip, and 6 gauge leads with heavy duty clamps. Performs a complete electrical system test in 82 seconds!
– Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
– Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
– Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes our products easier to use and more accurate.
– English and Spanish language menus and test results.
– Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
– Advanced Digital Pulse Load (DPL) technology – patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
– True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test.
– 16 Gauge, 20″ leads with professional grade clamps that are easily field serviceable.
– Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use.
Specifications
Battery Types & Voltage: 6 & 12 Volt, Flooded & AGM Battery
CCA Range: 100-1600 CCA
Automated Load: 120 Amp
Alternator Test: Yes / 12 & 24 Volt
Stator Diode Test: Yes
Starter Draw Test: Yes
Voltage Drop Test: No
Load Leads: 30”, 6 – Gauge Adapter Required for GM Side Post
Field Replaceable Leads: Yes
Infrared Battery Temp. Measurement: No
Communications to PC: RS-232 via Optional AC-12 Cable
Self Diagnostics: No
Memory: 188 Tests
Language: English and Spanish
Operational Temperature: 0 – 120 F
Operational Humidity: 0 – 85% – Non Condensing
Internal Battery: 9V
Dimensions: 5.9” x 9.6” x 2.1”
Weight: 4 Lbs
Rubber Boot: Yes
Carrying Handle: No
Clamp Storage Pins: No
Warranty: 12 Months
Optional Accessories
AC-24J Carrying Case
PR-12 Infrared Printer
AC-12 PC Adaptor Cable (BVA-200S Only)
AC-32 USB to RS-323 Adaptor
