Description
Timer Kit – Electromechanical 120 Min w/Hold, with Knob and Hardware – Threaded Bushing Mount
This timer kit contains components necessary to replace obsolete electromechanical timers in many older battery chargers. The included dial labels are particularly helpful in retrofit applications – for example, replacing a 90-minute timer.
Note that these installations are not direct “bolt‑in” replacements. Some modification of the charger cabinet may be necessary (e.g.- drilling holes), as well as a basic electrical knowledge and skill level.
Basic electrical tools are necessary. A multi‑meter may also be required.
This switch typically mounts in one of two orientations:

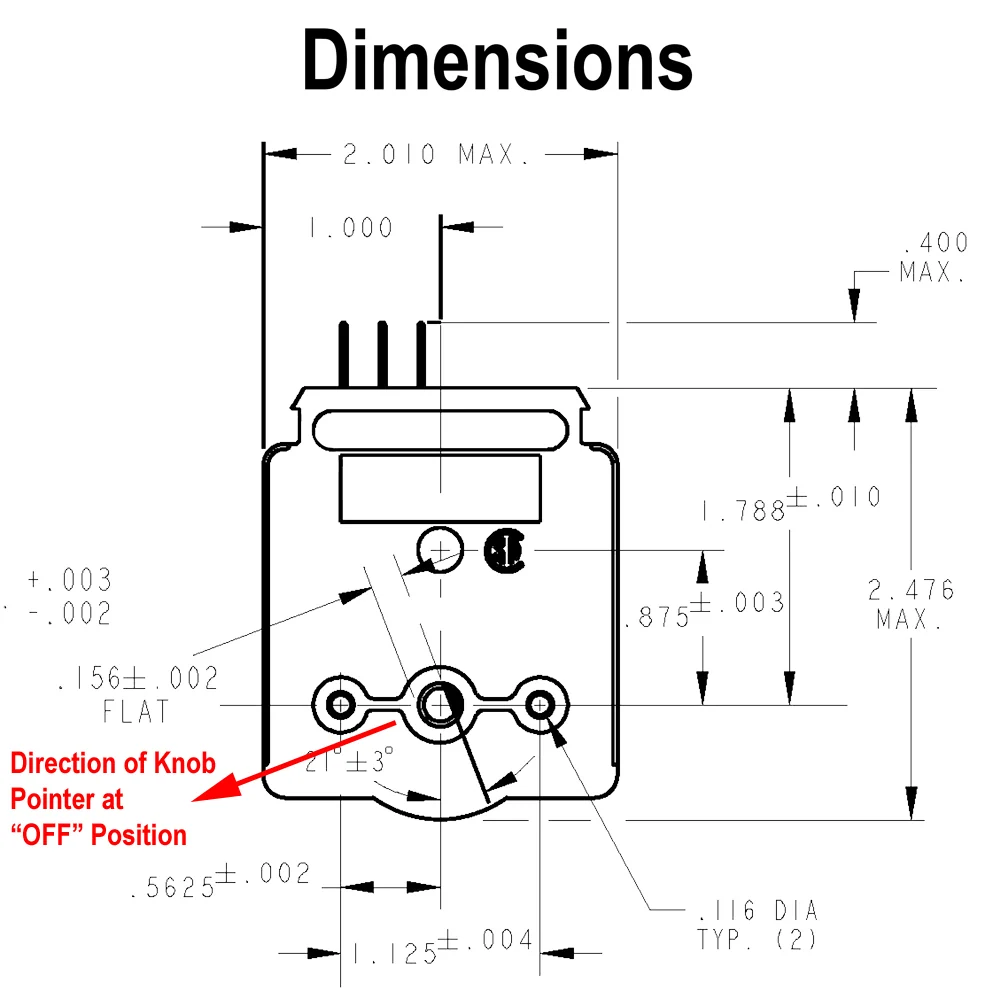

Horizontal Mount – the anti-rotation pin is aligned below the knob stem (at 6 o’clock) and the OFF position is at approximately 2 o’clock on the timer dial face.
Vertical Mount – the anti-rotation pin is aligned to the right of the knob stem (at 3 o’clock) and the OFF position is at approximately 11 o’clock on the timer dial face.
In either orientation, the timer has a “HOLD” position (constant ON) when rotated counterclockwise from OFF by approximately 15 degrees. Otherwise, when rotated clockwise to a set position, it will countdown back to the OFF position and power off the charger.
Features
– 120 Minute duration, with “HOLD” position.

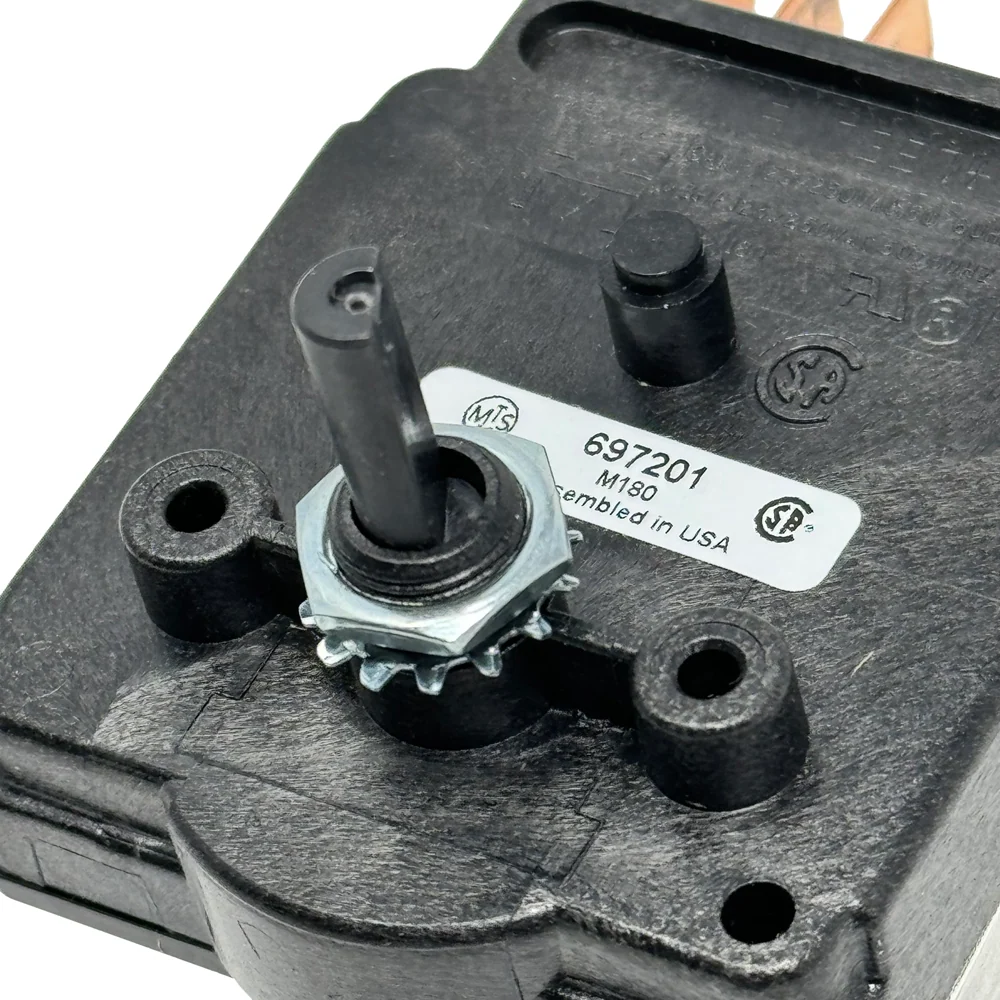

– Mounts in charger panel with included panel nut and lock washer.
– Straightforward instructions and simple design allows easy installation. No special tools are required, though drilling may be necessary.
– Made in the USA
Specifications

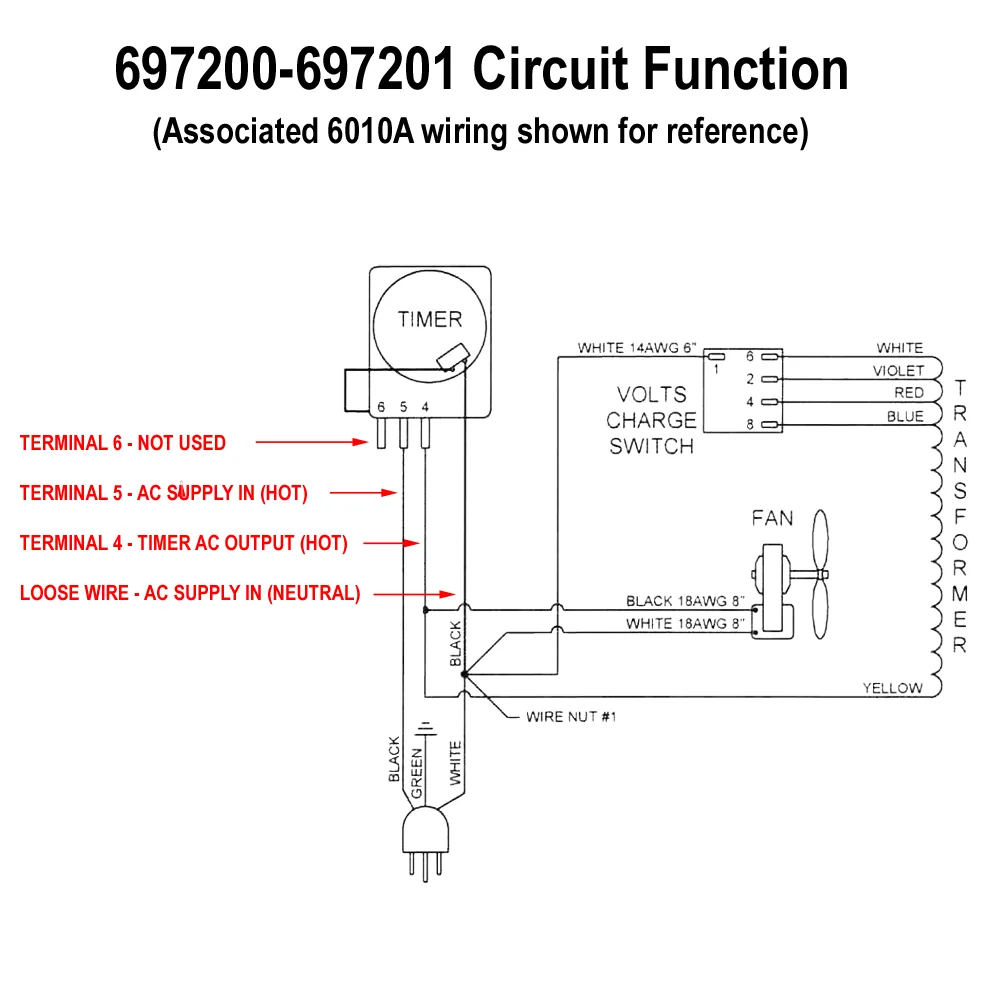

– .250″ Push-on connectors
– Switched Current Rating – 15A, 125/250VAC, 50/60HZ

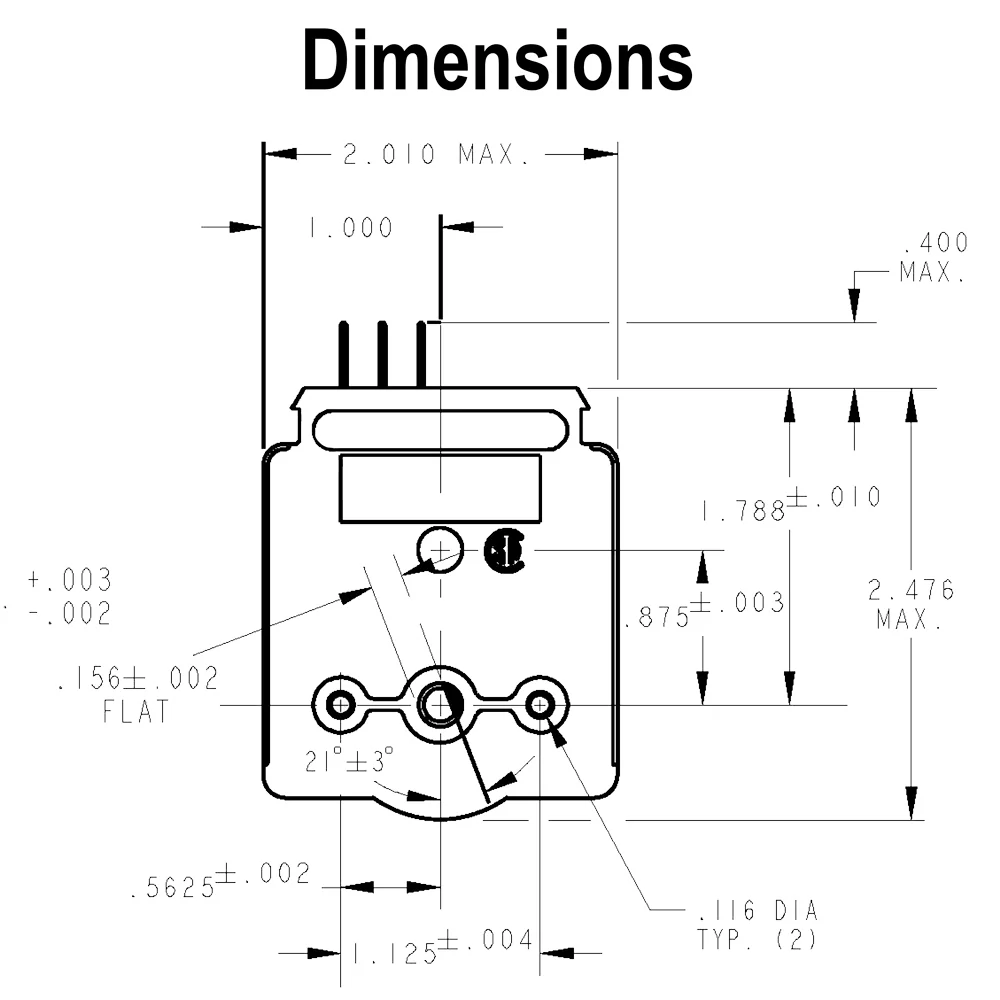

– Timer body – 2.476″H x 2.01″W x 1.969″D

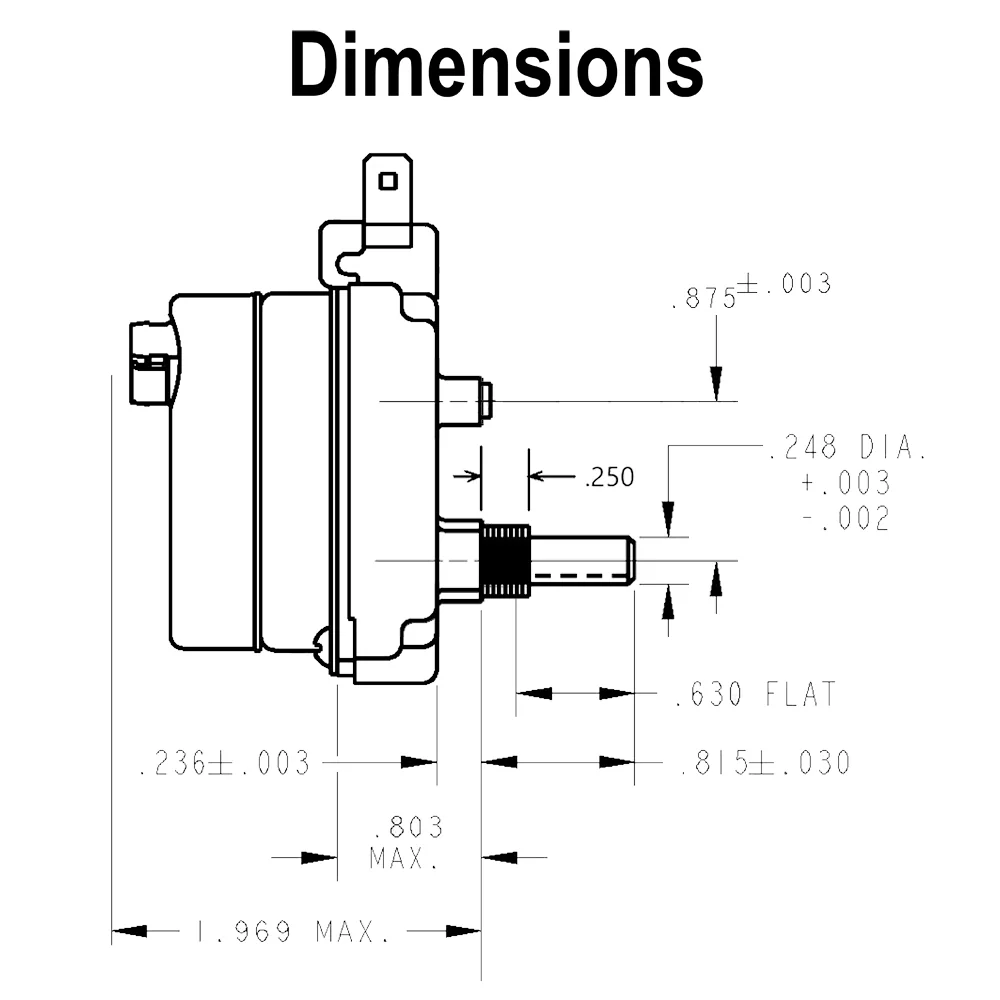

– Stem – .815″L x .248″ Diameter

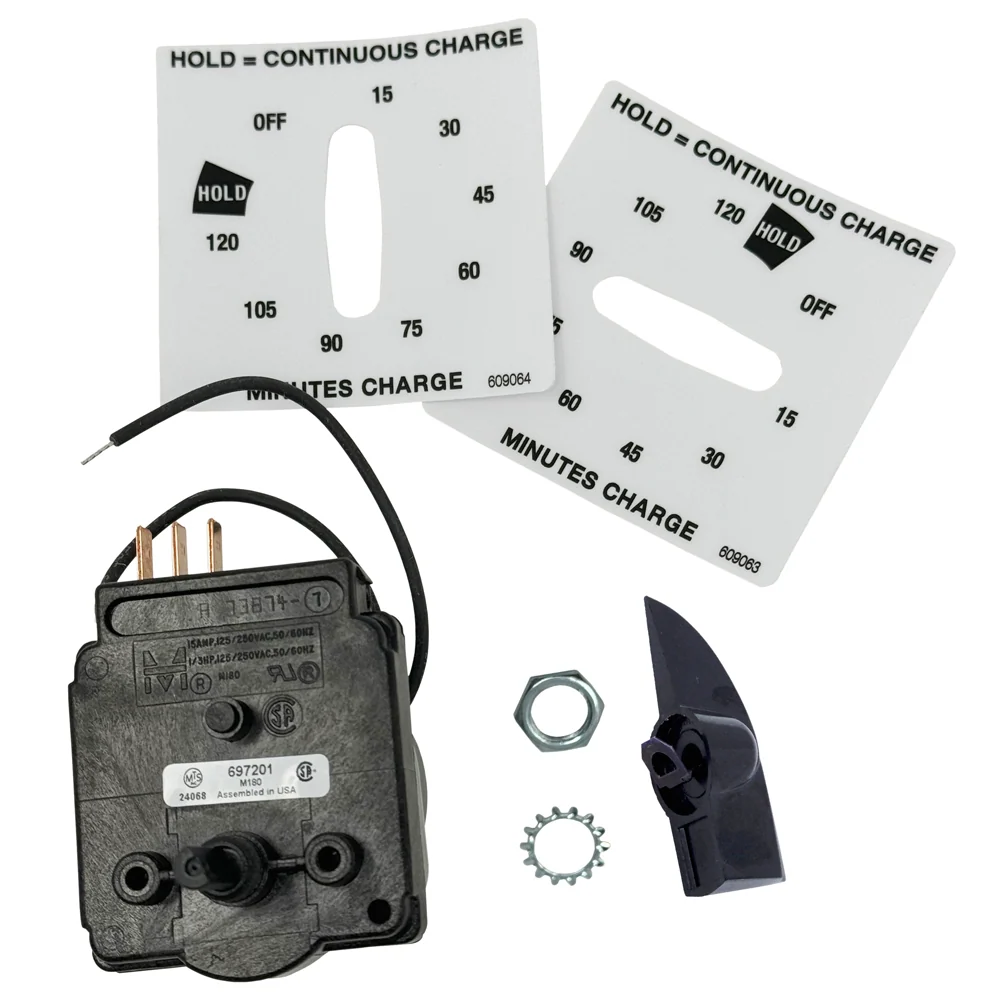

Contents

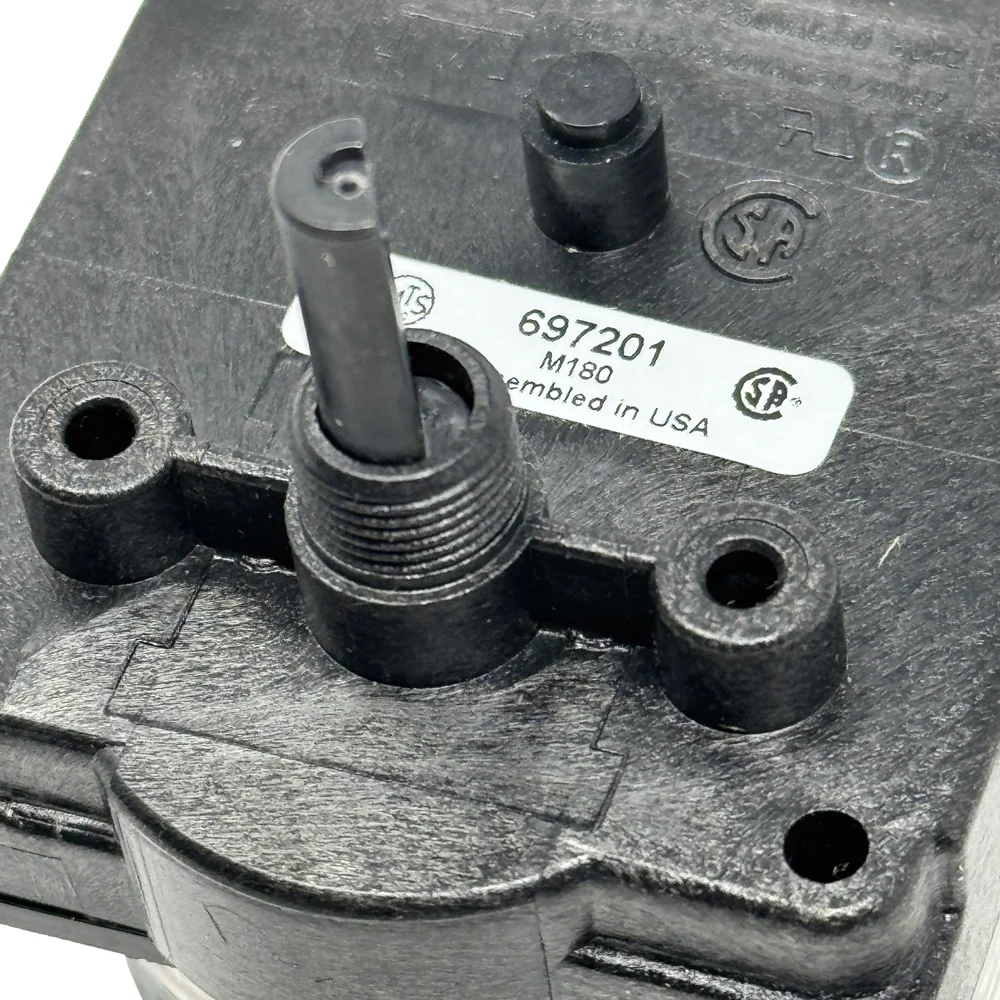

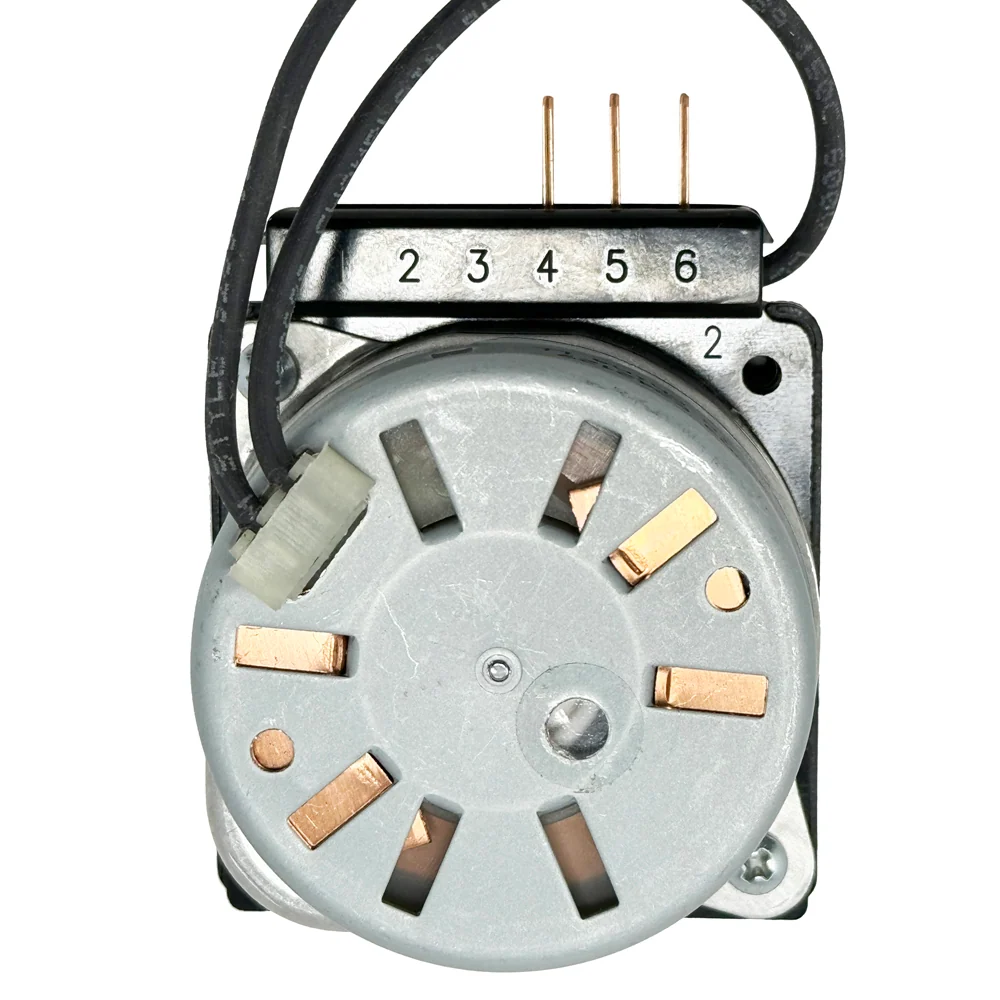

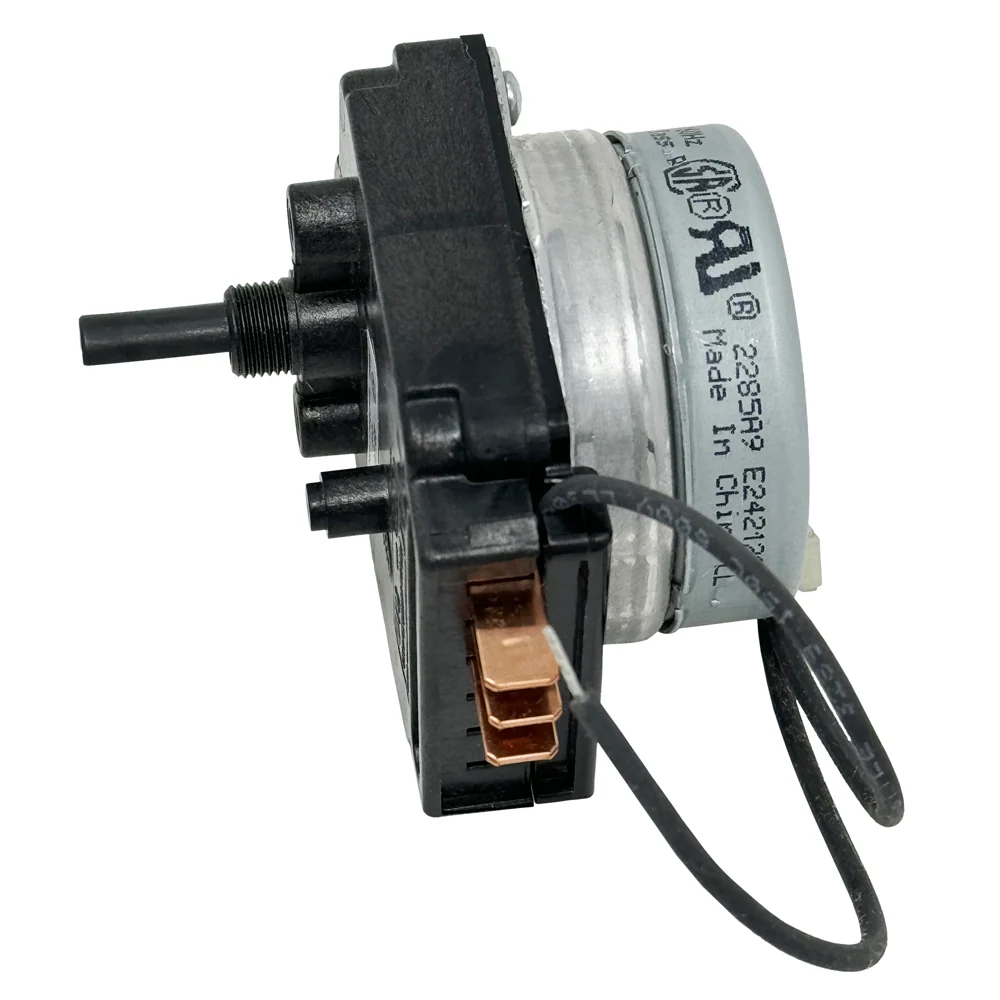

1 – 697201, 120-minute electromechanical timer with panel nut and lock washer

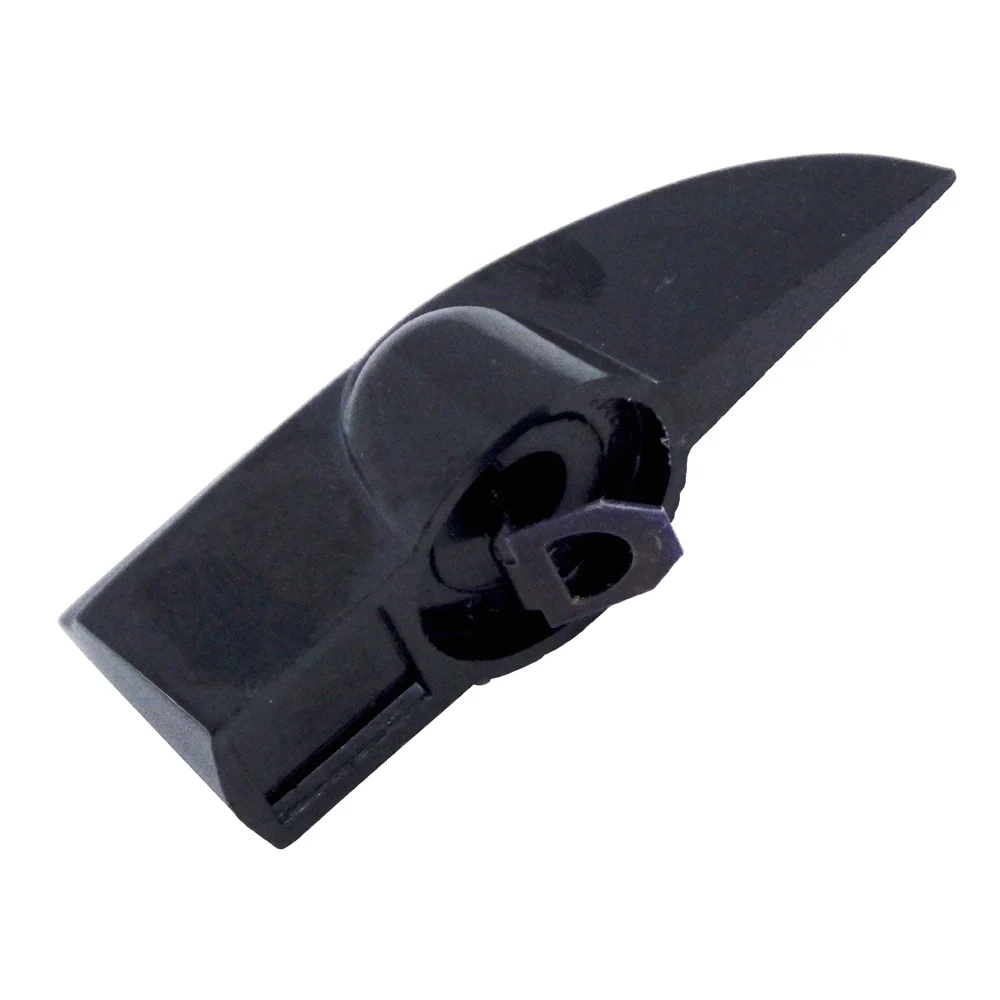

1 – 696550, spring clip pointer knob (EXACT OEM replacement for Associated )
1 – 609063, timer dial label – horizontal mount
1 – 609064, timer dial label – vertical mount
1 – Installation Instructions
