676308 – 80 Amp Waterproof Panel Mount Circuit Breaker, 32V DC Auto-Reset, 1/4-28 Studs

Description

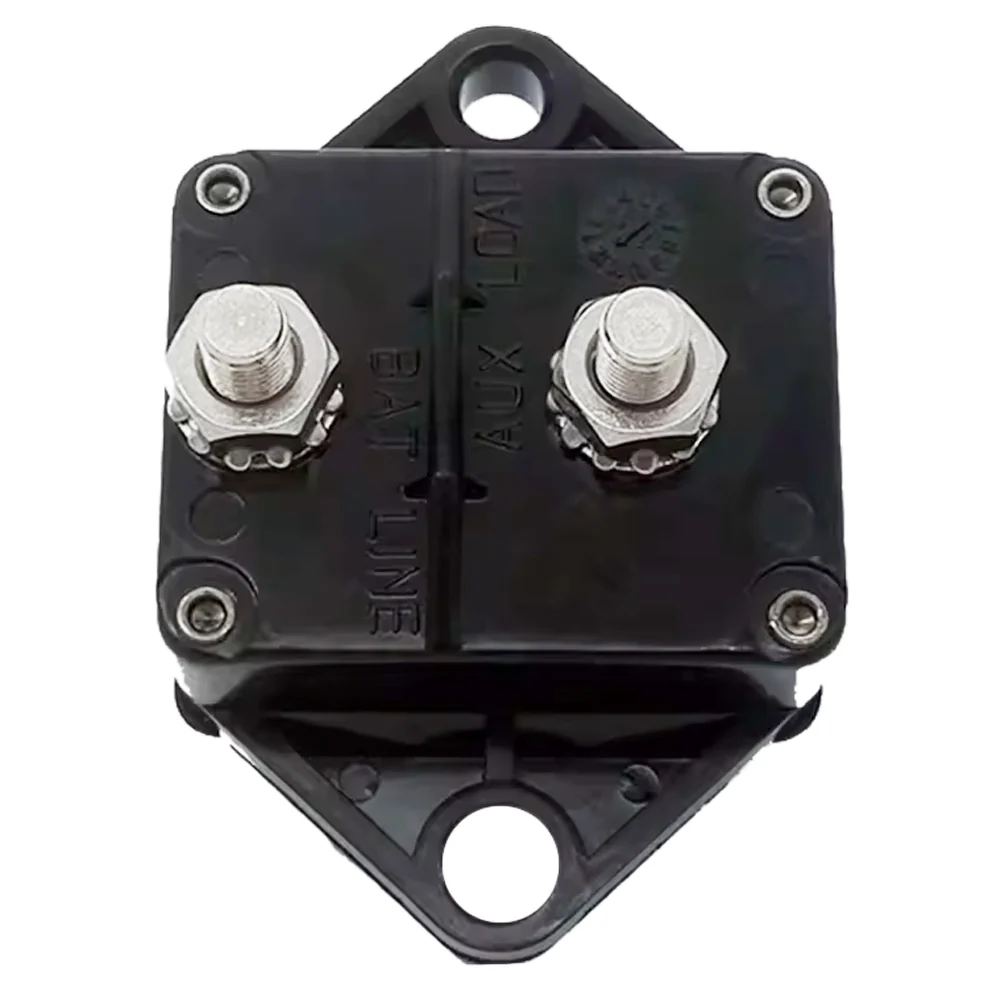

80 Amp Waterproof, Ignition Protected Panel Mount Circuit Breaker, 32V DC Auto-Reset, 1/4-28 Studs

Hi-Amp auto reset circuit breakers are designed to operate/cycle continuously during an overcurrent condition in DC applications. These Type I Circuit Breakers feature an internal composite alloy material which normally holds the contacts closed, but deflects and separates the contacts when an over-current situation occurs. It then returns to the run mode as the breaker cools.

– Auto-Reset – will continue to recycle until the source of the overcurrent is removed or corrected
– Designed for easy mounting to a panel using 1/4 in or 6mm bolt or screw
– Waterproof and Dustproof to IP67
– Ignition Protected – Sealed for engine compartment and bilge area applications

Replaces
Century 246-063-666

Specifications

Function Type: Type I Thermal Trip-free, Cycling
Number of Poles: Single Pole, Normal Closed
Maximum Current and Voltage Ratings: 80A @ 32VDC
Calibration @ 25C: 100% Hold, 135% Trip (percent of rating)
Maximum Interrupting Capacity: 3,000A 32VDC
Termination: 1/4″ – 28 Studs, Stainless Steel
Length: 2.95 in / 74.9 mm
Width: 1.93 in / 49.0 mm
Height (housing): 0.91 in / 23.1 mm
Height (over terminals): 1.46 in / 37.1 mm
Weight: 0.17 lbs / 76 g
Mounting: Panel Mount
Housing Material: Thermal Plastic
Operating Temperature: -32°C to 82°C (-25°F to 180°F)
Storage Temperature: -34°C to 149°C (-30°F to 300°F)
Ingress Protection: Splash and dust proof to IP67, sealed for engine compartment and bilge area applications.
Compliances: SAE J1625, ABYC E-11, CE, SAE J1117 (Ignition Protected), IP67
