611245 – Associated Eqpt Electric Timer, 120 Minute, 120 VAC

Name: 611245 - Associated Eqpt Electric Timer, 120 Minute, 120 VAC
SKU: 611245
Price: 84.85 USD
Availability: InStock

$ 84,85

28 in stock

Check the match before ordering

Part numberMatch the complete number, including letters and suffixes.
Electrical specificationConfirm voltage, chemistry and charging requirements.
Physical fitCompare dimensions, connector, polarity and terminal position.

Part / SKU: 611245
Brand: Associated®
Categories: Other

Description

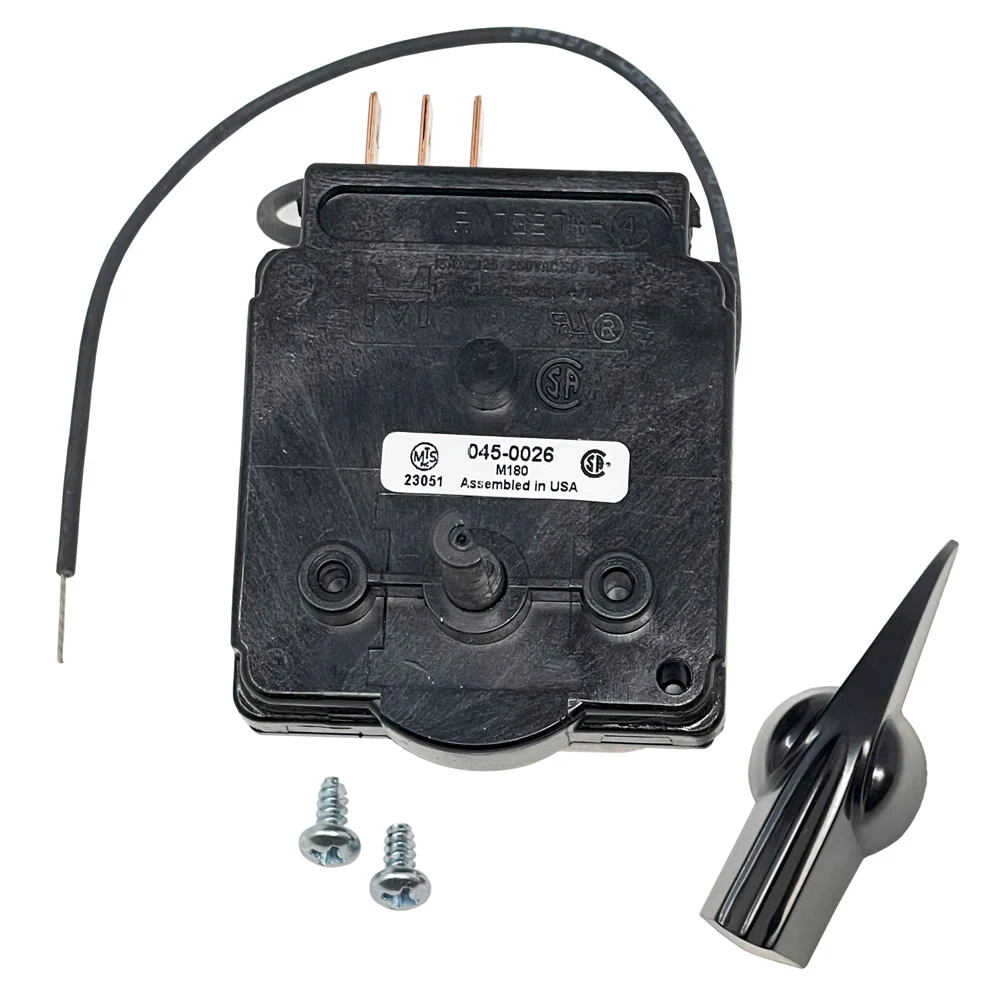

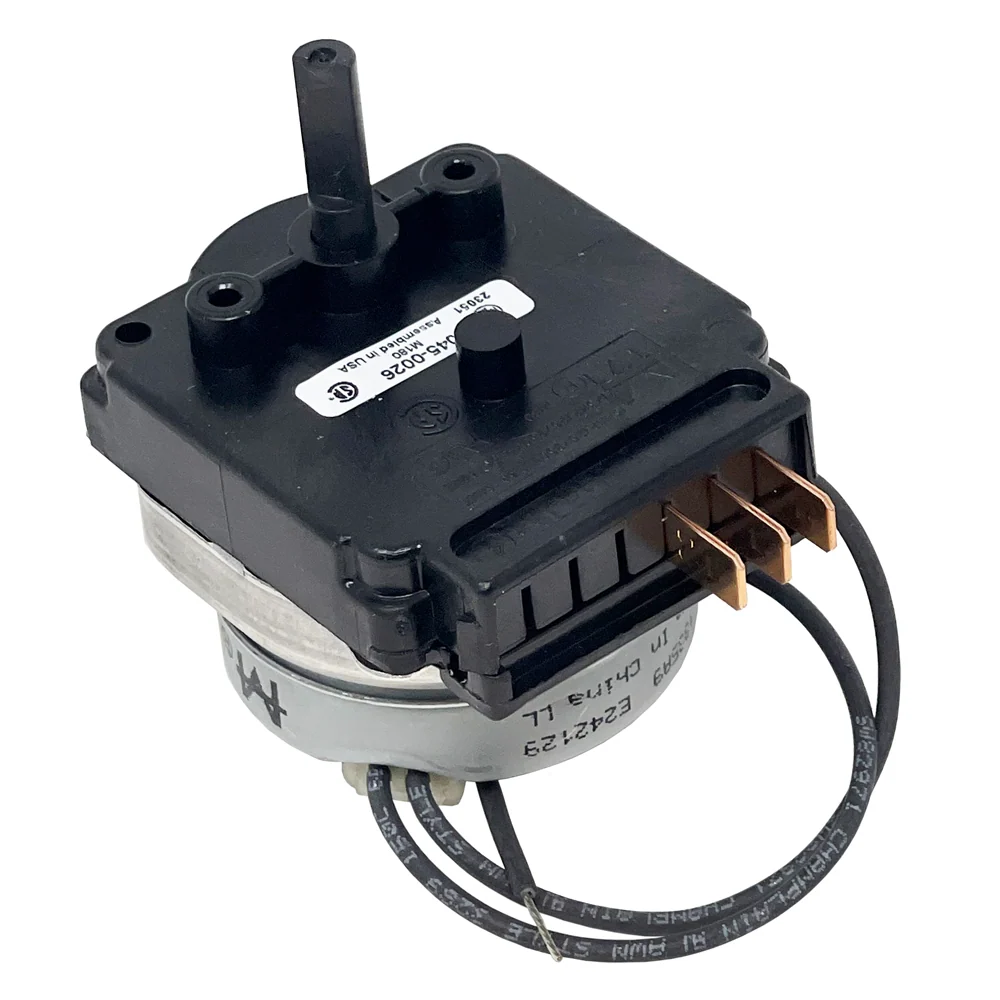

611245 – Associated Eqpt 120 Minute Electric Timer with Knob

For use in units with a 120 minute timer already installed. The timer controls battery charging in timed mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4″ spade terminals.

Note – If your unit has an older 90 minute mechanical timer, use the Associated timer retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

SAVE $$$ – order the Power Forged Timer Kit, same timer, less money!

Features

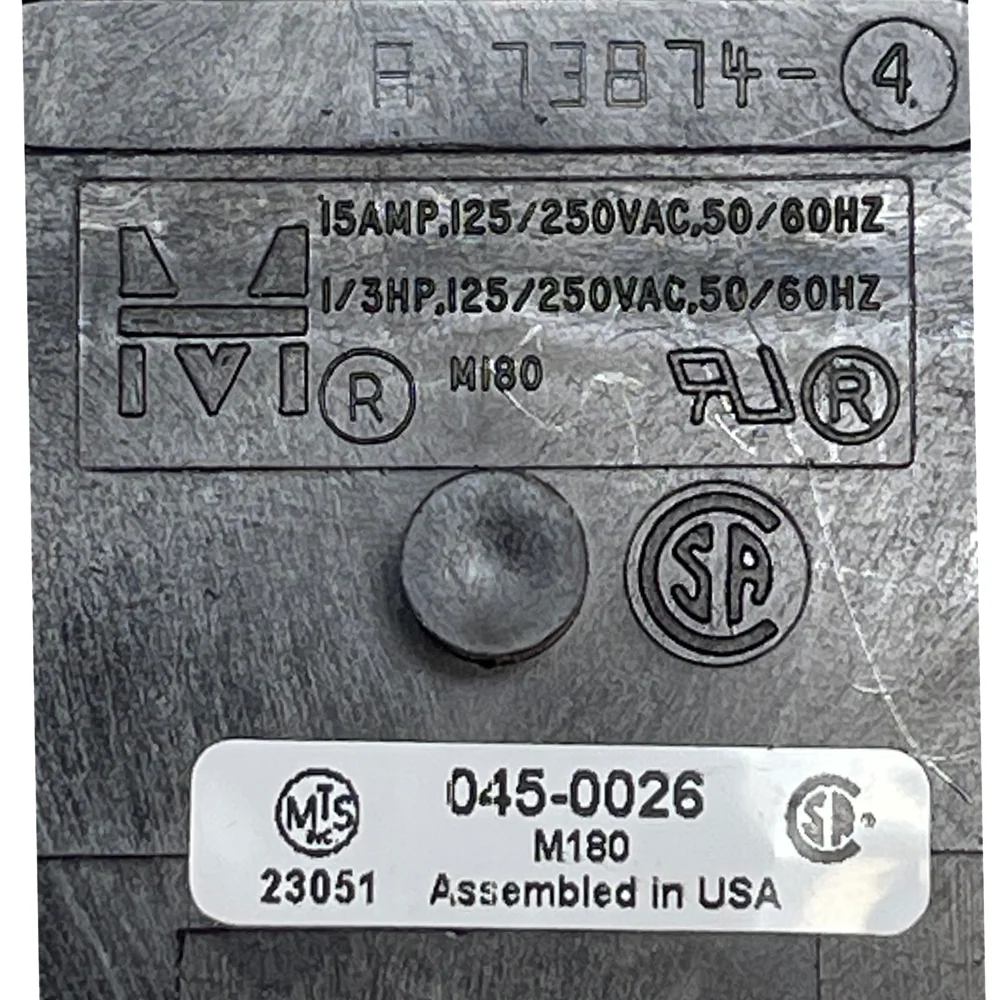

Switch: 15 amp, 125 VAC, 1/3HP
Knob: or
Mounting Screws: (2) #6-20 self-tapping, thread-cutting screws (included)
Termination: .250″ male spade terminals
Shaft extension: .248″ diameter molded shaft extending .75″ from the mounting surface with .65″ long flat
Mounting: Two .116″ diameter holes on 1.115″ centers to accept #6-20 self-tapping, thread-cutting (type 25) screws.
Certifications: UL, CSA
