610970 – Associated Eqpt Jaw Kit 500 Amp

Description

610970 – Associated Eqpt Jaw Kit 500 Amp (Repairs One Clamp)

OEM Clamp jaw repair kit features heavy duty copper construction for long life and high conductance.

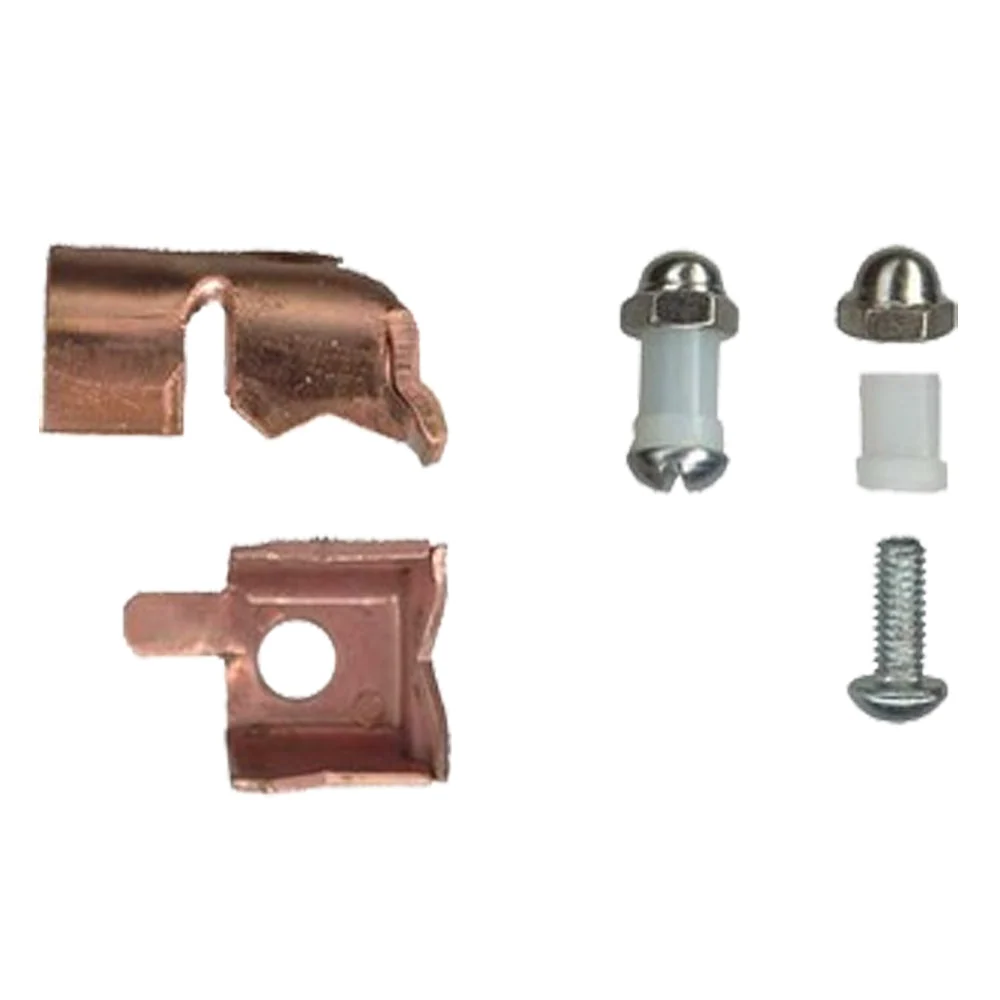

Includes:

1 – Heavy-Duty “Hot” Copper Jaw
1 – “Cold” Copper Jaw
2 – Nylon Bushings
2 – Screws
2 – Acorn Nuts

BETTER VALUE $$ – Check out these clamp kits made by Associated Equipment. They include the entire clamp assembly, including this jaw kit – saving you $$.

Features

– Heavy Duty Copper construction for long life and high conductance.
– Includes insulators and screws with acorn nuts.
– Requires Crimping and soldering for best connection
– See Clamp 6202 for entire replacement clamp instructions.

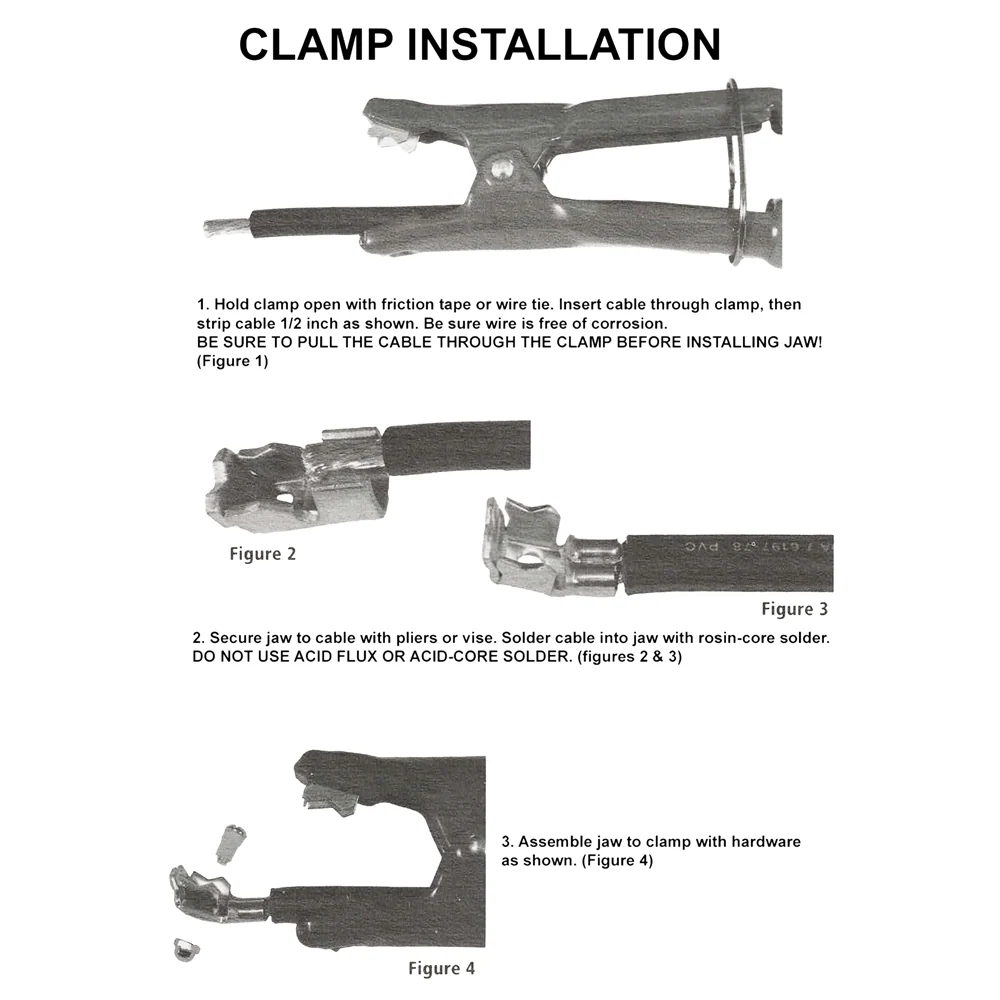

Instructions

– Hold clamp open by wrap of friction tape or cable tie around handles.
– Insert cable under clamp spring.
– Strip cable 1/2″. Be sure wires are free of corrosion.
– Solder cable into copper jaw with rosin core solder and torch or heavy iron. DO NOT USE ACID FLUX OR ACID CORE SOLDER.
– Bolt parts into place in the sequence illustrated.
– For chargers with cell test leads strip cable 3-1/2″ instead of 1/2″ to permit re-connection of the black #18 wire cell test lead.
