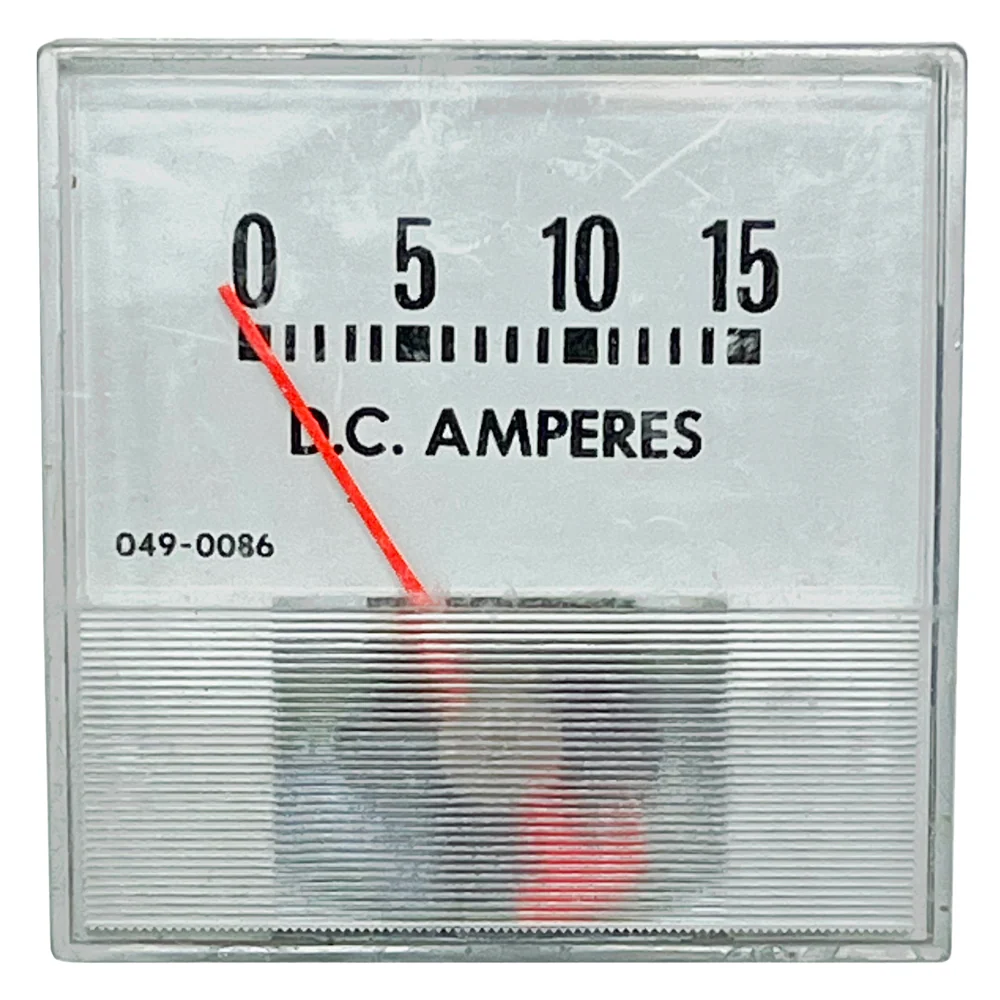

610197 – Associated Eqpt Meter, 15A – 6127, 8122 (NOS)

Description

Associated Eqpt Amp Meter, 0-15A scale. Model 37.

Fits Models
6127
8122

Features
– 0-15A Scale
– Stud mount
– Stud connectors
– Made in USA

Specifications:
– Polystyrene Bezel with Zinc-Plated Steel Backplate
– Rugged, Moving Magnet construction
– Bottom Movement – Needle pivots from bottom
– Accuracy: 5% of Full Scale
– 2.375″L x 2.375″W x .540″H Bezel Outer Dimensions
– 2.03″ Diameter Circular Panel Mount Hole
– #10 Brass Stud Connectors
– Includes Mounting & Connection Hardware

Includes
– Meter, nuts, washers

Note About NEW OLD STOCK
1. This is a “New Old Stock” part. It has not been used, but has been on the shelf for a long time – in many cases, 20 years or more. Do not expect it to be shiny. These parts are best used when you want the charger to be as “original” as possible, without resorting to later model parts (if they are available).
2. The pictures here are of the actual part.
3. This part has been discontinued by the manufacturer and is no longer available. Supplies are limited to the quantity we have on hand.
