Description
24BC2000T-1 Charger is replace by the Model 24BC2000T-4 71696

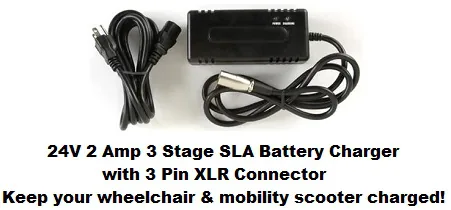

The Universal Battery Charger Model 24BC2000T-1 is a 24V 2 Amp – 3 Stage Charger with 3-Pin XLR Connector is now UPG Number 71696 Model 24BC2000T-4
| Specifications: | Features: | |
| Dim (LxWxH): | 6.0 x 2.65 x 1.65 | 3 Stage Charging Profile |
| Actual Weight: | 1.7 | 2 Mode Indicating LEDs |
| Ship Weight: | 3.0 | Demand Sensing |
| AC Input: | 100-240 VAC | Reverse Polarity Protection |
| AC Input: | 50/60 Hz | Over Voltage Protection |
| Output Amps: | 2.0 | Short Circuit Protection |
| Absorption: | 29.4 VDC | XLR Connector |
| Float: | 27.6 VDC | True Float Mode |
| Temperature: | 32 F to 104 F | Auto-sensing Universal Input |
| Approval: | UL1012,CUL,CE | For AGM & Wet Lead Acid Batteries |
| Warranty: | 1 Year | 7 to 22 AH batteries |
The Universal 24BC2000TU-4 24 Volt 2 Amp AGM Battery Charger is particularly suited for mobility applications like wheelchairs or scooters that use the standard 3 pin XLR connector (EXCEPT Everest-Jennings chairs), that use smaller sealed lead acid (AGM) batteries from 7 AH to about 22 AH.
Proper maintenance of lead acid batteries keeps them healthy, and increases their life expectancy. The 24BC2000T-4 float mode in these chargers allows them to be connected whenever the chair or scooter is not in use, keeping the depth of discharge in the batteries to a minimum. This increases battery life. This is a durable unit, with a 2 LED diagnostic display. The 24BC2000T-4 is excellent for use on deep cycle batteries. Universal part number 71696. This is the newest version of the 24BC2000 charger.
